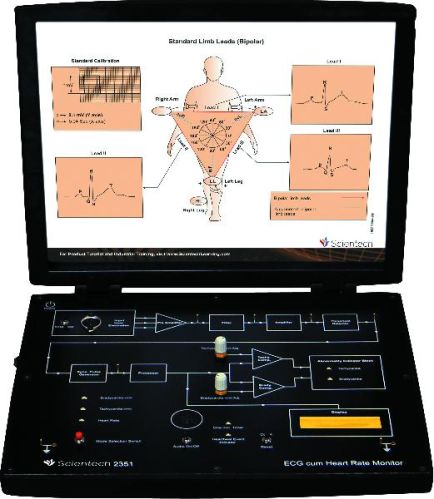

Scientech TechBooks are compact and user-friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information. ECG cum Heart-rate monitor Scientech Techbook 2351 provides the in-depth study of Electrocardiogram, ECG standard leads configuration   and the measurement of the heart-rate i.e. number of ECG pulses (heartbeats) per minute. Scientech Techbook 2351 enables the Electrocardiogram observation by affixing Biomedical Electrodes to the human body in standard bipolar leads configuration. The Heart-rate monitor receives each ECG observation (heartbeat) i.e. detects the electrical action executed by the heart of a subject (human body) and displays the heart-rate as the number of heartbeats per minute. Scientech Techbook 2351 also monitors the abnormalities occur in the human cardiovascular system which is Tachycardia (faster heart-rate) and Bradycardia (slower heart rate) using visible controls. It also facilitates the real-time acquisition of raw data (ECG) and their corresponding measurements by its real time Analysis Software. Scientech 2351, ECG cum Heart Rate Monitor is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features :

• Self contained and easy to operate.
•    16x2 LCD display of heartbeats per minute.
•    On board both visible (LED) and audible (buzzer) heartbeat event indicator.
•    Separate test-points to observe ECG waveform after each block (in simulation mode (SM) pre-amplifier and filter are not in the function because data coming from the simulator is already filtered and amplified data, while in real time mode all the blocks will be in the function).
•    In built Data Acquisition module with USB interface for Real time analysis.
•    On board one minute indicator.
•    User selectable Heart-rate, Bradycardia limit, Tachycardia limit display.
•    On board Bradycardia and Tachycardia Indicator.
•    On board Bradycardia limit, Tachycardia limit adjustment.
•    User Selectable buzzer for heartbeat indication.
•    On board Reset for display and One minute Timer reset.
