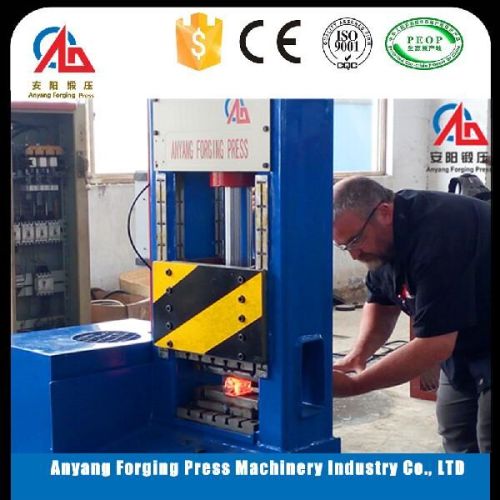

Steel Hydraulic Semi Automatic Blacksmith Free Open Die Forging Press

₹ 45,500 - ₹ 91,000 / Set

MOQ1 Set(s)
Automatic GradeSemi Automatic
Driven TypeHydraulic
MaterialSteel
CertificateCE
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Anyang Forging Press Machinery Industry Co. Ltd

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1956

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CertificateCE
SizeOpen Die Forging Press
Brand NameAnyang Forging Press
MaterialSteel
StandardNational Standard
QualityGood
After-Sales Service ProvidedAfter-sales Service Provided
Number Of FlowerForging Press
ApplicationPrecise Forging
Country of Origin220V, 380V, 440V
ConditionNew
Automatic GradeSemi Automatic
Power1-3kw
Driven TypeHydraulic
Total Carbohydrate1year
Place of OriginAnyang, Henan, China
Upward Idle speed80 mm/s
Downward Idle speed40 mm/s
Motor for hydraulic systemYL100L24-4B35 (N=3KW,n=1400rpm)
Machine type:Y04-25
Nominal force25 ton
Working speed (25MPa)min 7 mm/s
Work table (L*W)300*200 mm
Hydraulic oilYB-N46 antiwear hydraulic oil
Pump for hydraulic system25YCY14
Max stroke300 mm
Rated system pressure25 MPa
Outside size(L*W*H)1035*654*1890 mm
Height of work surface to ground710 mm
Model NumberY04-25
Distance between upper and lower work table400 mm

open die forging press machine is mainly used for blacksmith free forging works, like drawing out, bending, upsetting etc. Comparing with other forging equipment, forging press machine is environment-friendly, also the biggest advantage of forging press machine is no vibration.

the parameter of the open die free forging press:

machine type: y04-25

nominal force: 25 ton

working speed (25mpa): 7 mm/s

downward idle speed: 40 mm/s

upward idle speed: 80 mm/s

distance between upper and lower work table: 400 mm

max stroke: 300 mm

work table (l*w): 300*200 mm

height of work surface to ground: 710 mm

pressure cylinder: diameter:80,stroke:300

motor for hydraulic system: yl100l24-4b35 (n=3kw,n=1400rpm)

pump for the hydraulic system: 25ycy14

rated system pressure: 25 mpa

hydraulic oil: yb-n46 antiwear hydraulic oil

also, we have y13 series hydraulic open die forging press machine, jc31 series closed type forging trimming press, jh21 series open type high-performance press with fixed bed.
