Blast Booth Lift

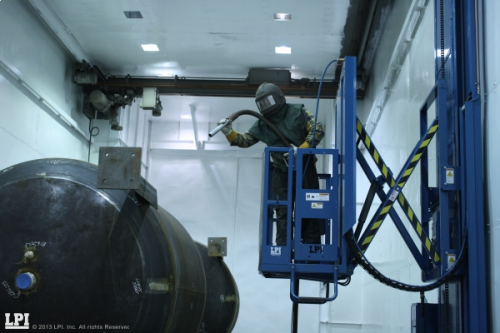

LPI Model BL Pneumatic Hydraulic 3-Axis Blast Lift is capable of 3-Axis travel. Designed to operate in the harsh environment posed by media blast booths this 3-axis unit can be used for steel grit, sand and other media blast systems. The entire lift travels on two steel V-wheels which ride on a lower rail mounted to the floor, and is guided by a wall mounted upper rail (5x2 tube). The upper rail also supports the festooning system. Both the upper and lower rails are designed to shed blast media. X-axis travel (horizontal movement) allows the lift to travel along the length of the booth at a rate of up to 40 FPM. The Z-axis travel (vertical movement) has the ability to elevate the operator platform at a rate of 15 FPM; from a lowered platform height of 20” to a maximum raised height of 15’ (both measured from the top of the lower rail to the platform floor). This allows for an operator working height of up to 21’ depending on lift model. The Y-axis travel (in and out of the platform) provides movement of the operator platform at a rate of 15 FPM; from a retracted depth of 4’ to a fully extended position of 9’ (both measured from the booth wall to the front of the platform). The three axes of travel can be operated either independently or at the same time.
The lift movement is controlled by the operator from a console located in the front of the platform. This console location allows the operator to face forward and observe the area as they move. Along with the motion controls for the lift, the console includes an emergency stop button (E-stop), emergency descent (E-down) and an unoiled air supply connection for tools or equipment.
Properly maintained, LPI’s personnel lifts and work platforms will provide many years of trouble free performance; increasing both the safety and performance of your workers.
