BLDC Servo Motors

Listing ID #3849141

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

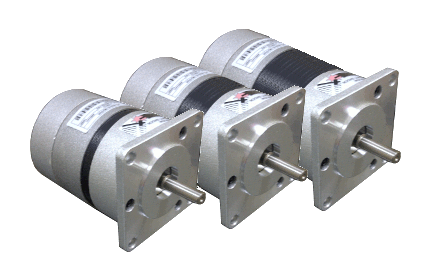

  Leadshine's  BLM  series  motors  are  highly  cost-effective  brushless  DC  servo motors. Rated speed of BLM series motors is 3000 rpm.  Standard  model  includes  a  1000-line  differential  encoder (EA+/EA-, EB+/EB-), and Hall Sensors with standard Hall signals (U, V, W). Servo systems built with the BLM series motors and Leadshine ACS series servo drives are able to offer AC-servo-like performance, such  as  high  speed,  high  precision,  low  motor  noise  and  low  heating performance, while at the cost of normal stepper systems.
View More Details
Send Enquiry

Company Information

  • Member Since 12 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Model Series Rated
Power
(W)

Frame Size

Torque
(N*m)
Rated
Voltage
(V)
Speed
(RPM)
Encoder
Resolution
(line)
Motor
Length
(mm)
Shaft
Diameter
(mm)
Continuous Peak Continuous Peak
BLM57025 BLM 25 NEMA 23 0.08 0.24 24 3,000 4,000 1,000 70 6.35
BLM57050 BLM 50 NEMA 23 0.16 0.48 24 3,000 4,000 1,000 80 6.35
BLM57090 BLM 90 NEMA 23 0.29 0.87 36 3,000 4,000 1,000 100 6.35
BLM57130 BLM 130 NEMA 23 0.41 1.23 36 3,000 4,000 1,000 120 8
BLM57180 BLM 180 NEMA 23 0.57 1.71 36 3,000 4,000 1,000 140 8
57BL180 BLM 180 Round face
diameter 54mm
0.57 1.71 36 3,000 4,000 1,000 122 8













Company Details close-icon

Leadshine Technology Co.,Ltd., founded in 1997, specializes in development, manufacturing and sales of high-quality motion control products. Leadshine offers a full complement of stepper drives, stepper motors, motion controller, servo drives and servo motors to serve a diverse industrial and OEM customer in Asia, Europe, America, Africa, Australia, and so on.
Leadshine's manufacturing facilities in China are superiorly equipped, professionally staffed, and ISO-9001 certified. As a result, Leadshine has the capability to supply high-quality stepping and servo products at extremely competitive prices.
Leadshine's products have been successfully applied and proven in thousands of applications such as inkjet printers, electronics equipments, analytical and medical instruments, assembly, semiconductor manufacturing, packaging, engraving (CNC routers), textile equipment, robotics, laser machines and pick-and-place devices. Leadshine's standard "off-the-shelf" products most often can provide the solution to your stepping and servo motion control requirements. However, if your application is unusual and/or emanding Leadshine will engineer a design to optimize your product's performance. Many times this results in increasing customer's productivity and product reliability while reducing costs.
Leadshine believes the key to be a successful motion products supplier is the commitment to fully understanding the customer's equipement and the operating environment in which it must function. This is achieved by working closely with both the customer's engineering and manufacturing groups. In many cases we participate from initial concept to finished product providing needed motor and control expertise. Our engineering experience allows us to offer customers a valuable service in the design of their products and selection of a motion control solution.
Leadshine's products are available internationally through its sales offices and a global network of professinal local distributors. Sales/after-sales services, product literature, samples, technical technical support can be provided by contacting Leadshine directly, or through its USA office, or distributors.
Our Profile
We would like to introduce ourselves as a solution provider with a wide range of Linear Motion Products & Systems supported with design and manufacturing for various industrial applications.
We are Authorized Importer & Stockiest for Taiwan & Korean make Linear Motion Products in India, including LM Guideways & Ball Screws – Rolled OR Ground, Standard OR Special as per customer's requirement Our other prodicts including hardened andground Shafts, LM Bearing, Housing with LM Bearings, Shaft support assembly, Cross roller guide, Frictionless tables, Track roller guide systems are also avaible off the shelf..
These products are widely accepted and adopted by GODREJ, L & T, Forbes Gokak, Mahindra & Mahindra,, Crompton Greaves, etc. in field such as Machine tools, SPMs, Metrology i.e. Measuring & Inspection Machines, Diamond Processing, Packaging, Electronics, Printing, Painting, Welding, Pharmaceuticals, Robotics & Automation, General Engineering Industry & similar related industrial products.
Special Custom made Ground Ball Screws to your samples OR drawing OR specification at shortest delivery period and Recondintioning of Ground Ball Screws is our specialty.
We are proud of providing superior quality products and have ability to meet scheduled deliveries, from basic assemblies to complex linear motion systems & custom made multi axis slide assemblies having LM Guides combined with Ball Screw Drive & Positioning in a wide range and capacities to perform a variety of tasks from simplex to complex application to your specifications including design & manufacturing at our own Tool Room.
Our engineers are always prepared to accept challenges for any of your unique requirements of new development. We invite customers with their applications for design challenges, where our engineers can expose their knowledge and experience for the right solution.
We provide our services to contractors, system integrators, end users and OEMs & extend our full support to their engineers at design stage to integrate our products for the ease of manufacturing process. We have an established network of regional authorized representatives in metros for marketing and with unique after sales services.
In case of any doubts, please, feel free to contact us without any hesitation for further details.
Now, we look forward for your valuable enquiries / orders.
