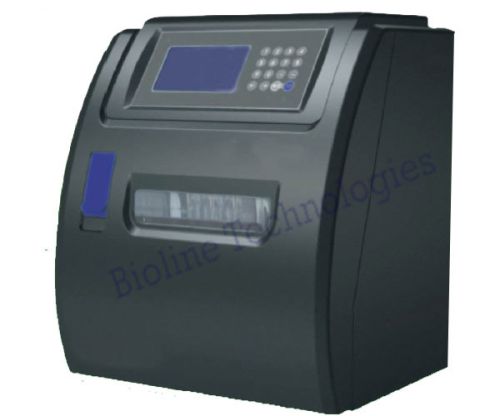

Blood Gas Analyser

Electrolyte & Blood gas analyser

BG 2100 is an innovative ISE Electrolyte and blood gas analyser complementing our existing ISE NG. The analyzer measures K+, Na+, Cl, Ca++, pH, PCO2 and PO2 in whole blood, serum and plasma. The analyzer has a compact design, is easy to operate, economical and is virtually maintenanace free. The aspirate probe has a self-cleasing mechanism affording enhanced operator safety, low carry-over and cross - contamination.

Technical Specifications

> Equipment interface : 240 X 128 dots LCD display with soft key pad
> Analysis principle : Direct "Flow Thru" electrodes
> Sample volume : ≤200µ
> Sample type : Whole blood, serum, plasma.
> Sample application : Sample cup, capillary or collection tube.
> Throughput : 65 samples / hour
> Calibration : Automatic two-point calibration with additional option for carrying out one-points and two-point calibration manually.
> Pre adjusted standby mode with automatic calibration steps.
> Quality control : 2 different levels of quality controla.
> Printer : Built in stationary head graphical thermal printer.
> Storage Capacity : 1000 samples.
> Interface port : RS 232
> Power : 110   230V AC, 50/60 Hz
> Dimensions : 452(H) X 452 (W) X 500(D) mm appox.
> Equipment weight : 15 kg appox
> Operating environment : 15º to 30 ºC , 20% ~  80% RH, 86 ~ 106kPa
