Blow Moulding

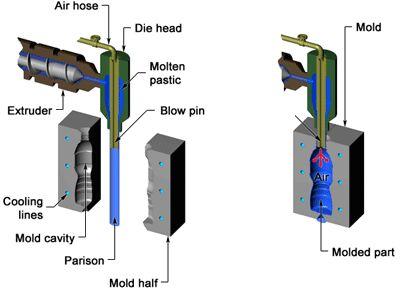

Blow molding is a manufacturing process that is used to create hollow plastic parts by inflating a heated plastic tube until it fills a mold and forms the desired shape. The raw material in this process is a thermoplastic in the form of small pellets or granules, which is first melted and formed into a hollow tube, called the parison. There are various ways of forming the parison. The parison is then clamped between two mold halves and inflated by pressurized air until it conforms to the inner shape of the mold cavity. Typical pressures are 25 to 150 psi, far less than for injection molding. Lastly, after the part has cooled, the mold halves are separated and the part is ejected.

Parts made from blow molding are plastic, hollow, and thin-walled, such as bottles and containers that are available in a variety of shapes and sizes. Small products may include bottles for water, liquid soap, shampoo, motor oil, and milk, while larger containers include plastic drums, tubs, and storage tanks. Blow molded parts can be formed from a variety of thermoplastic materials, such as Low Density Polyethylene (LDPE), High Density Polyethylene (HDPE), Polyethylene Terephtalate (PET), Polypropylene (PP) and Polyvinyl Chloride (PVC).
