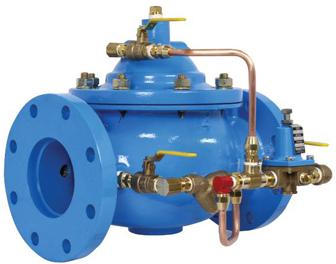

Automatically reduces a higher inlet pressure to a constant lower outlet pressure. The valve consists of a main valve and (Fig. 55) pressure reducing control pilot. Slight changes in downstream pressure acts on topside of control diaphragm causing main Valve to counteract pressure changes and hold a constant outlet pressure.
The regulator will reduce the upstream pressure to a constant downstream pressure regardless of the change in flow rates/or inlet pressure. The pilot is a Normally Open
valve that senses the downstream pressure.
Models: – DA 355 (Globe), DA 3550 (Angle).
Size: – 25 NB – 750 NB.
Spring Range: – Standard: 20-175 Psig, Optional: 5-35 Psig.
Materials: – Carbon Steel, Alloy Steel, Stainless Steel etc.
Additional Features: –
Pressure Reducing/Sustaining.
Pressure Reducing/Check
Pressure Reducing/Solenoid On-Off.
Pressure Reducing/Surge
Pressure Reducing/Low Flow By-Pass.
