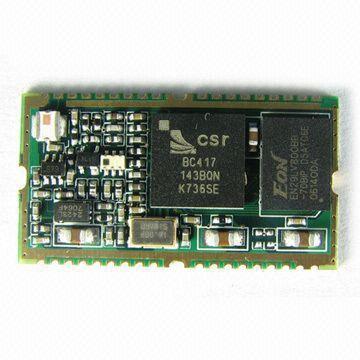

Bluetooth Class1 Bc04-ext Module-btm222

We are offering bluetooth class1 bc04-ext module-btm222.
features outline
block diagram
■ bluetooth ver. 2.0+edr certification
■ transmit power up to +18dbm(class1)
■ low current consumption:
hold, sniff, park, deep sleep mode
■ 3.0v to 3.6v operation
■ full bluetooth data rate over uart and usb
■ support up to 7 acl links and 3 sco links
■ enhanced data rate(edr) compliant
for both 2mbps and 3mbps modulation modes
■ interface: usb, uart&pcm( for voice codec)
■ spp firmware with at commands
■ rohs compliant
■ small outline: 28.2 x 15.0 x 2.8 mm
application
● access point
● domestics and industrial applications
● serial adapter
● gps, pos, barcode reader
