Bluetooth RFID Reader, Android System Reader

We are offering iso 14443a/b &iso 15693 bluetooth rfid reader, android system reader.
view larger image
displaying 1/1
displaying 1/1

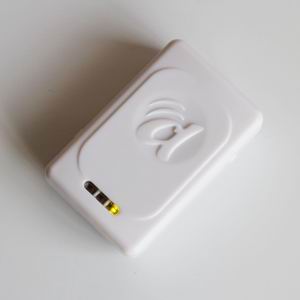

iso 14443a/b &iso 15693 bluetooth rfid reader,android system reader
item#: d-think_bpcd1200
retail price: us$156.00
wholesale price: us$€
¥
156.00
start from: 1 unit(s)
manufactured by: d-think technologies,inc.
weight: 0.2 kg(s)
qty.range(unit) price(per unit) discount
1-9 us$156.00 no
10-99 us$140.40 10%
100-499 us$132.60 15%
500-999 us$124.80 20%
1,000+ us$117.00 25%
description:
bluetooth rfid reader (bpcd) is a 13.56mhz frequency reader with the widely used bluetooth communication interface, can be used in combination with bluetooth laptop computers, mobile phones etc.
bpcd with small dimension, the largest size is 20*42*66mm,can read and write rfid tags complying with iso / iec 14443a, iso / iec 14443b and iso / iec 15693 international standards. It can be compatible with devices running with pocket pc 2002/2003, wince 5.0 or windows .0/6.0 , windows xp or win vista operating system.
this hf rfid bluetooth reader d-think 1200 with reading range of 5cm or 6cm, is widely used in the industries of security (warehouse management, personnel identification, even ticket, food ,quality control, supply chain control), patrol, mining, finance and railway system etc.
parameter
frequency
• 13.56mhz
support chips
• iso14443a: mifare_one(s50&s70)/ultralight/mifare_pro
• iso14443b: at88rf020/sr176/srix4k/sle66cl160s/thr1064 and other contactless cpu cards completely in line with iso14443b protocol
• iso 15693: _it hf-1/i.code sli
operating system
• windows2000/xp/win7, pocket pc 2002/2003, windows ce 5.0, windows .0/6.0/6.5
• android
physical interface
• bluetooth
power supply
• bl-5c battery (capacity)1020ma, can be rechargeable and removable
indicator
• three-color(green, blue and red)
read/write distance
• iso 15693: 5cm (depending on the antenna structure and the used environment)
• iso 14443a/b: 3.5cm (depending on the antenna structure and the used environment)
shape
• dimension: 20 * 42 * 66mm
• weight: about 100g
power
• 5ma (typical)standby
• 90ma (typical)field scanning
• 3.3v (typical) operation
development environment
• c++, vc, java, c#, vb, vb.net, pb and delphi
applications
• personnel identification, electrical inspections, warehouse/prison/cylinder/ medicine/ticket management, food security, package tracking and quality control
