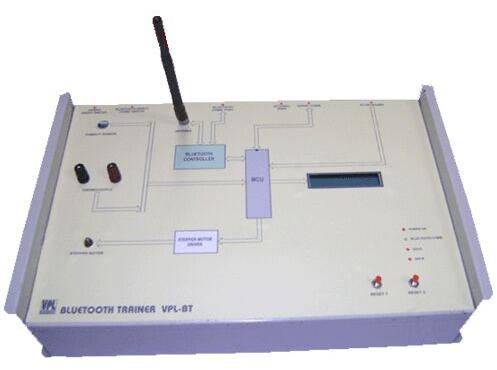

    Bluetooth Serial Development Board (VPL-BT)

    • Receiving sensitivity-80dBm~-20dBm.
    • Operating SystemWindows 98SE, Windows ME, Windows 2000, Windows XP.
    • Coverage0.5m~100m (Varies depending on use environment).
    • Frequency2400~2483.5MHz.
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 19 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07AACFV6024H1Z9

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Current consumption80mA standard.
    • Max Transmission power20dBm (BluetoothTM TX power class 1).
    • ModulationFHSS/GFSK 1Mbps, 1600hop/s.
    • Receiving sensitivity-80dBm~-20dBm.
    • Data transmission speed723.2k/57.6kbps (asymmetrical, max.); 433.9kbps (symmetrical, max.)
    • Operating SystemWindows 98SE, Windows ME, Windows 2000, Windows XP.
    • Coverage0.5m~100m (Varies depending on use environment).
    • Frequency2400~2483.5MHz.

    FEATURES

    • Wireless range of over 100M (130 ft).
    • Interface with RS-232 system.
    • No devices required.
    • Supports baud rate from 2400-115200 baud.
    • SMA antenna connection for direct antenna connection on each..



    EXPERIMENTS

    1. Message on LCD
    2. Transfer of data from trainer to PC.
    3. ADC1 value display on LCD.
    4. Running of stepper motor.
    5. Read/Write EEPROM at 0 location and display on LCD.
    6. RTC display on LCD.
    7. Relay ON/OFF.
    8. Buzzer ON/OFF.


    PACKAGE CONTENTS

    • Blue Tooth Trainer Kit.
    • Blue Tooth Dongle.
    • ASCII Keyboard.
    • RS-232 Serial Cable.
    • Technical User Manual.
