Bluetooth Tire Pressure Monitoring System TMPS With US CPU, Wireless Control

₹ 10 - ₹ 20 / Set

MOQ1 Set(s)
Driven TypeElectric
Brand NameTTCIOTSDK
Max Pressure13bar
CertificationCE Certified, ISO 9001:2008 Certified, IC
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 5 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameTTCIOTSDK
Car MakeCar, Motor,
Max Pressure13bar
Number Of FlowerTire Pressure Monitoring System
CertificationCE Certified, ISO 9001:2008 Certified, IC
ApplicationPressure Monitoring
Availability10-20kg
Packaging TypeBlack
Country of Origin3V
ConditionNew
Driven TypeElectric
Automation GradeAutomatic
SizeD11.5*H10mm
ColorBlack

bluetooth low energy smart tire pressure monitor system

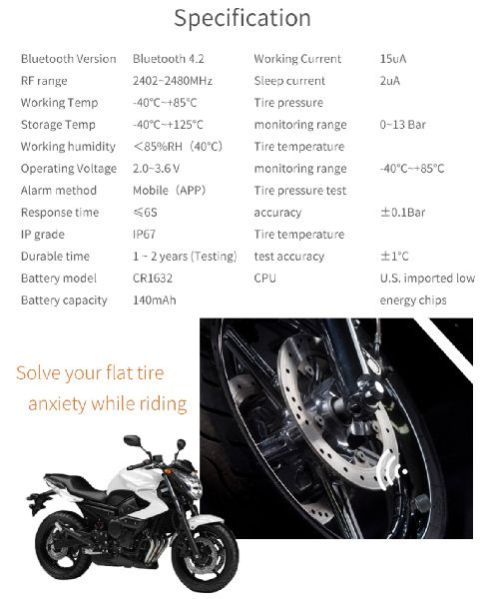

specification

bluetooh version :bluetooth 4.2 working current :15ua

rf range :2402~2480mhz sleep current :2ua

working temp :- 40℃ ~ + 85℃ tire pressure monitoring range :0- 13bar

storage temp: - 40℃ ~ + 125℃ tire temp monitoring range -40℃~ +85℃

working humidity < 85% rh (40℃) tire pressure test accuracy ±1℃

operating voltage 2.0~3.6v cpu :us imported low energy chips

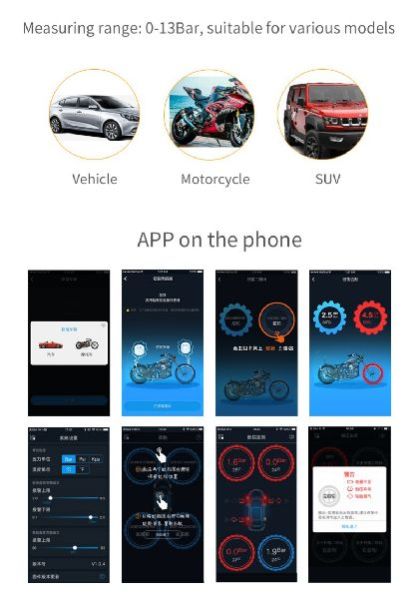

alarm method mobile （app） response time :≤6s

ip grade: ip 67 durable time :1~2 years

battery model: cr1632 battery capacity :140mah

ture sensorless alarm

different from the bluetooth tire pressure products on marketing, our tire pressure monioring products only need to pre-install app in advance and turn on the mobile phone’s bluetooth, normal information even without opening app.

ultra low power bluetooth 5.1 chip cc2640r2f

equipped with a new generation of ti simplelink^tmbluetooth 5.1 low energy wireless triple-core processor, brings a very fast experience with extremely low power consumption.
