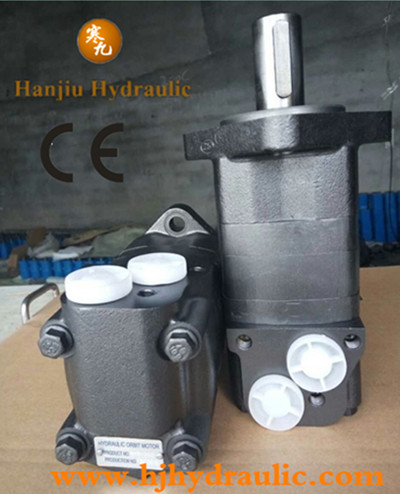

BM5-80/BM5-100/BM5-160/BM5-200/BM5-400 Orbital Hydraulic Motor

We are offering Hanjiu Hydraulic ORBIT MOTOR BM5 :
Product Description
Hydraulic Motor OMS 400 Series Is Popularly Applied:
-Winch in boat -Plastic Injection Moulding Machine -sweeper machine
- lawn mower -road line marker-wheat harvest machine -concrete pump truck-low speed heavy load facilities
- drilling machine -wooden spliter and other high load machine.
Typical Feature
1. Shaft seal can beari high back flow pressure.
2.Higher radial force can bear 500kg weight, when hydraulic motor arrive 200rpm.
3. Wide variety of mounting flanges, shafts, ports and easy installation.
4. Compact in design with disc valving motor and geroler type
5. Freely disassemble leakage
6. Phosphating coating to protect from rusting.
7. Needle bearing
8.OMS 400 Can be Compatible With OMS 400+MS MS MLHS +Eaton 2000series2K series
Type OMS
80 OMS
100
OMS
125
OMS
160 OMS
200 OMS
250 OMS
315 OMS
375
Displacement
(ccrev)
80.6
100.8
125
157.2
200
252
314.5
370
Max torque
(n.m) cont 190 240 310 31 6 400 450 560 536
int 240 300 370 430 466 540 658 645
Max pressure
(Mpa) cont 17.5 15 1 4 12.5 12 10
int 21 21 21 21 16 16 14 12
Max speed rate
(rpm) cont 800 748 600 470 375 300 240 200
int 988 900 720 560 450 360 280 240
Max flow
(Lmin) cont 65 75 75 75 75 75 75 75
int 30 30 30 30 30 30 30 30
Weight(kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6
