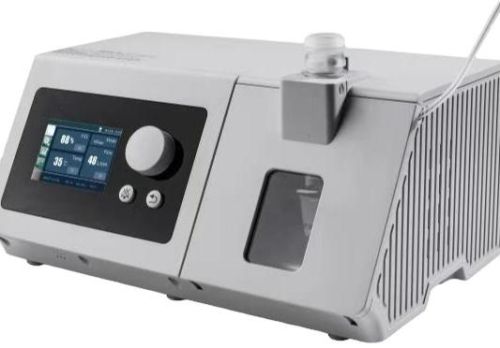

BMC R80 B High Flow Oxygen Therapy Humidifier

The HFNC oxygen therapy is carried out using air \ oxygen blender ,active humidifier single heated tube and nasal cannula it is respiratory support. The HFNC continuous to increase easily set up it may also create positive pharyngeal pressure to reduce work of breathing the device midway classical oxygen delivery system like high concentrations CPAP generators .  It is designed a heated humifided mixture of air and oxygen at a high flow than the inspiratory flow. It adjust the flow rate and body weight provides a degree of distending pressure. It also decrease works of breathing and oxygenation . It utilizes a soft large bore nasal prongs it is similar to used on mechanical ventilator with the HFNC. It overcome the leading causes of discomfort seen with conventional oxygen therapy. It is a difficult quality level of PEEP generated by the high flow. It support breathing in people with acute heart failure , Acute respiratory distress syndrome.  It avoids rebreathing of co2 gas and therefore decreased anatomize dead space. It promoted a slow and deep breathing . it airway hydrated and it improved mucus clearance . This improves FRC and reduce work of breathing it flows used are high humidification is necessary to avoid drying of respiratory secretions and for maintaining nasal cilia function . It is mild positive airway pressure and lung volume recruitment.  It will titrate FIO2 and flow to promote comfort and oxygen saturation. It ensure the monitor spo2 saturation and pleth wave form. It ensure maintain a o2 saturation on NRB mask It delivery of optimally humidified and warm gases  It decreased body energy expenditure. It is used for intubation and extubation support as well as treatment and prevention of post operative respiratory failure and for oxygenation patients during trails or bronchoscopy.

Overview:

• The BMC ResPro series non-invasive Bi-level ventilator has been designed highly integrated with twin turbine motor, with its high flow and non-invasive mode, can meet the more needs of clinical treatment
• The high flow mode provides a maximum of 80L / min of  air/oxygen mixtures, the oxygen concentration setting automatically, and exclusive patented AutoFlow function and SmartFlow function.
• In Bi-level non-invasive mode, the max. IPAP can reach 50cmH2O and target oxygen concentration can be set. The specifically design of disinfection-free, the backflow prevention valve on humidifier chamber to prevent gas backflow, make the maintenance much more convenient.

Benefits:

• The high flow mode provides a maximum of 80L / min of air/oxygen mixtures, the oxygen concentration setting automatically, and exclusive patented AutoFlow function and SmartFlow function
• In Bi-level non-invasive mode, the max. IPAP can reach 50cmH2O and target oxygen concentration
• Control target oxygen concentration automatically, oxygen delivery in the machine, 21% -100%, accurate to 1%; Wall oxygen source, oxygen cylinder, oxygen generator can support it;
• The built-in ultrasonic oxygen sensor requires no maintenance.
•  9-stage humidification temperature: 29 ℃ -37 ℃, accurate to 1 ℃.
•  Advanced dual fan design, two levels of HFlow and LFlow, 2 L / min ~ 80 L / min, can meet patients of most ages.
• Innovative 7-level humidity compensation function, providing ± 3 adjustable humidity compensation, easily coping with various harsh temperature and humidity environments
• Innovative High Flow model
• AutoFlow Automatically set the output flow parameters based on the peak expiratory flow (PEF) of the patient, simplifying the setting steps, satisfying the treatment effect and improving patient comfort.
• SmartFlow Follow the patient's every breath, switch the flow between breaths, provide a higher flow when inhaling, and a lower flow when exhaling, follow your every breath like a bi-level ventilator, comfortable and more economical oxygen resources
• Real-time monitoring of Oxygen Concentration, Flow, Temperature, Respiratory Rate, Speep
• Simple installation and easy setup Integration, disinfection-free design, saving clinical use and maintenance time
