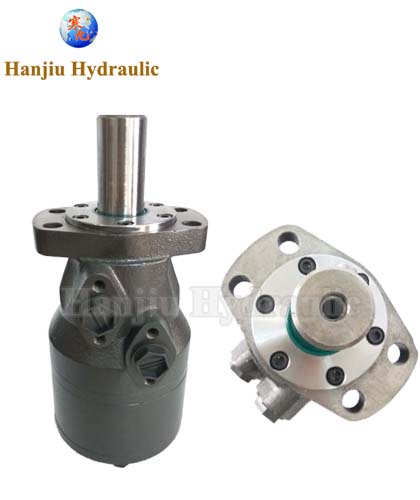

BMH Orbit Hydraulic Motor

Orbital Motor BMH Meet The Construction Machinery Hydraulic System And Construction Machinery Hydraulic System
Advanced manufacturing devices for the Gerolor gear set, which use low pressure of
start-up,provide smooth, reliable operation and high efficiency.
Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation
Type
BMH
200
BMH
250
BMH
315
BMH
400
BMH
500
Displacement
(ccrev)
203.2 255.9 316.5 406.4 489.2
Max torque
(n.m)
cont 510 621 740 850 830
int 439 348 282 220 184
Max pressure
(mpa)
cont 17.5 17.5 17.5 15.5 12.5
int 20 20 20 19 16
Max speed rate
(rpm)
cont 366 290 236 183 155
int 439 348 282 220 184
Max flow
(Lmin)
cont 75 75 75 75 75
int 90 90 90 90 90
Weight(kg)
10.5 11 11.5 12.3 13.0
BMH Hydraulic Motors Suitable for applications such as conveyor drives, winches, agricultural machinery, forest machinery, cranes, sawmill equipment and liftselevators.
