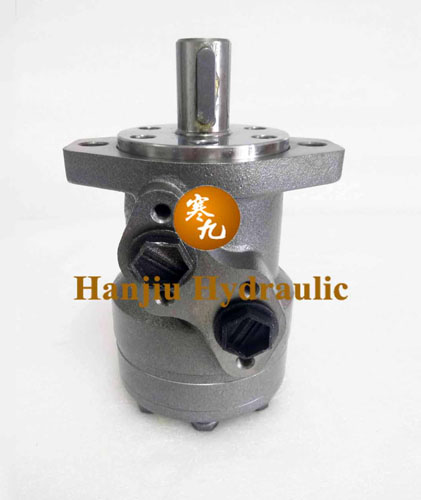

BMP Hydraulic Orbit Motor, Brand Name : Hanjiu

Hydraulic orbit motor bmp
bmp series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set design and provide compact volume, high power and low weigth.
characteristic features:
* advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.
* shaft seal can bear high pressure of motor of which can be used in parallel or series.
* advanced construction design, high power and low weight.
Order code:
code
bmp
displacement
36
50
80
100
125
160
200
250
315
400
500
flange
2
2-ã�13.5 rhomb-flange,pilot ã�82.5ã�8
4-ã�13.5 rhomb-flange,pilot ã�82.5ã�8
h4
4-38-16 square-flange,pilot ã�44.4ã�2.8
h5
4-m10 square-flange,pilot ã�44.4ã�2.8
output shaft
a
shaft ã�25,parallel key 8x7x32
b
shaft ã�32,parallel key 10x8x45
c
shaft ã�25.4,parallel key 6.35x6.35x31.75
e
shaft ã�25.4,splined tooth sae 6b
r
short shaft ã�25.4,parallel key 6.35x6.35x31.75
f
shaft ã�31.75,splined tooth 14-dp1224
fd
long shaft ã�31.75,splined tooth 14-dp1224
g
shaft ã�31.75,parallel key 7.96x7.96x31.75
t
cone-shaft ã�28.56,parallel key b5x5x14
t3
cone shaft ã�31.75,parallel key 7.96x7.96x25.4
port and drain port
d
g12 manifold mount 4xm8, g14
m
m22ã�1.5 manifold mount 4xm8, m14ã�1.5
s
78-14 o-ring manifold 4x516-18unc, 716-20unf
p
12-14 nptf manifold 4x516-18unc,716-20unf
r
pt(rc)12 manifold 4xm8, pt(rc)14
rotation direction
omit
standard
r
opposite
paint
00
no paint
omit
blue
b
black
s
silver grey
unusually function
omit
standard
n
big radial force
o
no case drain
f
free running
ls
low speed
