BMP Series Conveyor Belt Scales

Product Usage :
Mainly used for weighing material on a moving conveyor belt, throughput and consumption rate measurement for production systems
Description:

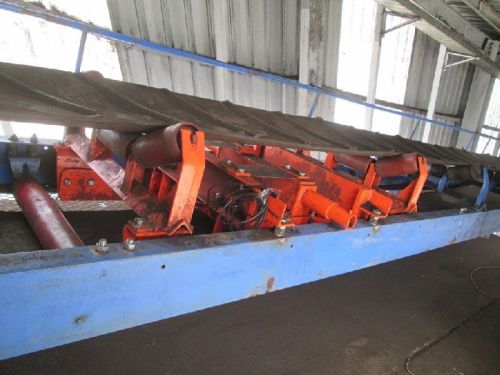

BMP Belt Weigher is installed under the belt conveyor to make continuous weighing for the conveying material on conveyor belt. It is precise, reliable and can meet the requirements of many harsh environments.
Application: It can be widely used in building materials, chemicals, coal, ports,ceramics, food and other industries.
Principle:
When the material on the belt conveyor passes through the belt weigher, the load cells detect the material weight and generates a signal in proportion to the material weight. The weight signal is transmitted to the controller.
At the same time, the speed sensor installed under the scale detects the belt speed and generates a signal which is also transmitted to the controller.
By multiplying the weight signal and the speed signal, the instantaneous flow rate and total accumulation can be calculated.
Main Features:
� Equipped with intelligent weighing controlle;
� Flexible to measure continuous, different material streams;
� Automatically perform zero measurement and system calibration;
� The control instrument can display both instantaneous flow rate and total accumulation, and can also transmit signal synchronously;
� With the function of over-load alarm;
� Can save electric-shock date permanently;
� Self-diagnosis function and can be connected to DCS system
Specifications:
Weighing range: 0.1~2000th
Weighing mode: Dual-idler
Weighing Accuracy:±1%
Maximum angle of inclination: 30 degree
