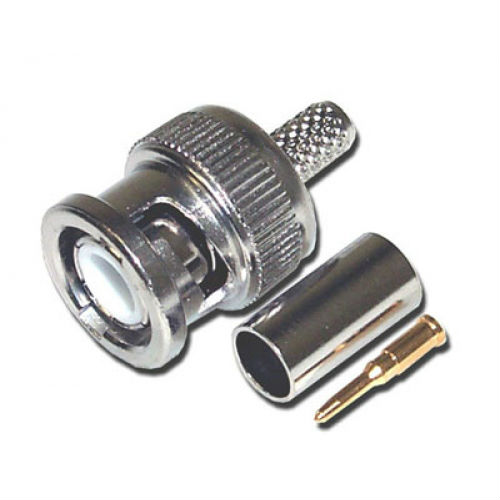

Bnc RF Coaxial Connector, Bnc Connector For Cable

MOQ500 Piece(s)
Temperature range-65°C to +165°C
Dielectric withstanding Voltage1500V rms, 50Hz (depending on cable)
Insulation resistance≥ 5000 mΩ
Bodies BrassNi plating
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Bodies BrassNi plating
Dielectric withstanding Voltage1500V rms, 50Hz (depending on cable)
Insulation resistance≥ 5000 mΩ
RF-leakage (between 2÷3 GHz)≥55 dB
Working voltage500V rms, 50Hz (depending on cable)
Frequency rangeDC～4GHz
Temperature range-65°C to +165°C

Offering bnc rf coaxial connector/bnc connector for cable.
ELECTRICAL DATA 　
Impedance 50Ω
Frequency range (for connector interface) DC～4GHz
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance ≥ 5000 mΩ
Contact resistance centre contact≤1.5mΩ
outer contact: ≤ 1 mΩ
RF-leakage (between 2÷3 GHz) ≥55 dB
MECHANICAL DATA 　
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force ≥450N / 101.2 lbs
Contact captivation ≥27N / 6.1 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA 　
Temperature range -65°C to +165°C
MATERIAL DATA 　
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber

Additional Information

Payment Terms T/T, Western Union,
Packaging Details1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton
Delivery Time5days
