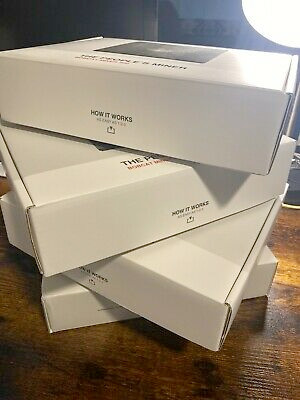

Bobcat Miner, Packaging Type : black

Processor
Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
RAM
2GB / 4GB / 8GB
Storage
64GB MicroSD Card
Frequency
EU868 Version: 863MHz ~ 870MHz
US915 Version: 902MHz ~ 928MHz
Sensitivity
-125dBm @125KHz/SF7
-139dBm @125KHz/SF12
TX Power
Up to 26 dBm
Antenna Gain
US915: 2.6 dBi
EU868: 2.8 dBi
Antenna Impedance
50 Ohm
Antenna Radiation Pattern
Omni-Directional
Wi-Fi
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
Bluetooth
Bluetooth 5.0, BLE
LoRaWAN
Supports Class A, C
Input Voltage
DC 5V - 3A
Interfaces
USB Type-C (Power Supply) * 1
Ethernet RJ45 * 1
RP-SMA Female Antenna Connector* 1
Operating Temperature
0°C to 50°C
Relative Humidity
0% - 90% (non-condensing)
Heat Dissipation
