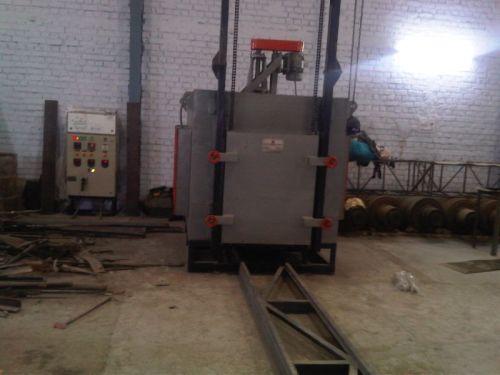

The Bogie Hearth furnaces are designed to operate up to 1200°C with heating by natural or LP gas, oil combustion systems and electricity.
Key features:Â
| It is designed for easy loading of materials through the large access door and unloading for rapid quench processes. | |
| The furnace can be operated with multiple bogies to increase load rate and efficiency. | |
| The bogie hearth is constructed from high strength refractory and capable of withstanding harsh conditions. | |
| The heat resistant steel pedestals support work baskets. | |
| Sealing of the vertical lift doors and bogie is done by pneumatically operated soft seal clamps to ensure no ingress of cold air. | |
| The integrated control system includes programmable temperature control and independent over-temperature protection. | |
| Temperature recorders with connections for trailing thermocouples are provided for maintenance of quality records. | |
| Process Capabilities * Stress Relieving of cylinders & pressure vessels * Heat Treatment of forgings & castings * Homogenising / Ageing * Annealing of large components * Heat Treatments with defined heating & cooling rate Very-efficient for batch heat treatments of large & heavy components with controlled heating & cooling rate. Various sizes & specifications of furnace are available depending upon application, from 20 to 1000 kW or even higher can designed. * Heavy reinforced structure of rolled structural steel. * Heavy duty rope & drum or rack & pinion arrangement * Door & bogie sealing arrangement * High grade refractory lining ensures higher thermal efficiency. * Internal air circulation can be provided optionally. * Rapid cooling arrangement can also be provided. |
