Boiler Pipe Welding Real Time Radiography Inspection System

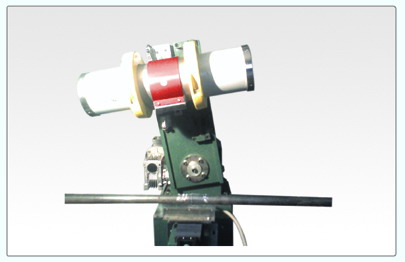

Boiler Pipe Welding Real Time Radiography Inspection System The Real Time Radiography system which Inspect Boiler Pipe Welding is specified for the inspection of small diameter(boiler) butt welded pipe girth weld. It is mainly composed by X-ray machine, digital radiography unit, image processing&storage unit, mechanism unit and electric unit and protection room and monitor unit. Dynamic noise detection technology, more efficient detection Static automatic noise reduction technology, covenient operation Welding Steam marking Flat-panel detector Built-in rotation mechanism, debugging-free installation Fully digital system solution 24hours continuously working System resolution: 30LP/cm System parameter: Pipe diameter: 54-104mm(CHG-G225/320P-B)  Pipe thickness: 3-13mm Rotating device: 1-6 rotation/min adjustable Pic of unit.
