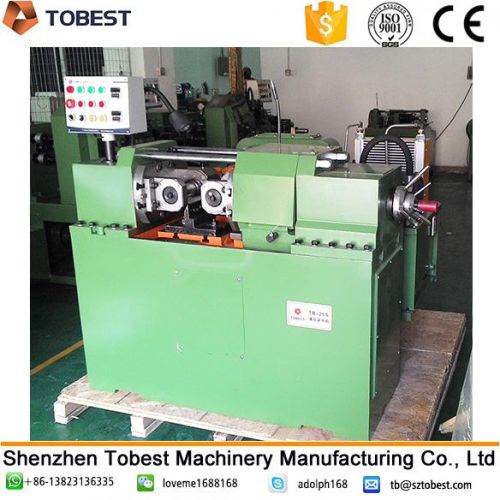

Bolt and Nut Making Machine

Get Latest Price

MOQ1 Set(s)
Range of pitch rolled1.0-2.5P
Thickness of rolling die110mm
Inside diameter of rolling dieφ54mm
Machine motor5.5HP(4042W)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shenzhen Tobest Machinery Manufacturing Co. Ltd

Shenzhen

View Number

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Outside diameter of rolling dieφ135mm-φ170mm
Thickness of rolling die110mm
Machine motor5.5HP(4042W)
Range of pitch rolled1.0-2.5P
Inside diameter of rolling dieφ54mm
Work piece diameterφ4-42/mm
Length of thread rolledFixed and rolling-through for option
Max. feed pressure12T

We are offering bolt and nut making machine.
1.designed according to the characteristics of architectural hardware industry. The machine is cost-effective.
2.the bed adopts overall casting, gearbox drive,and equipped with a thread rolling regulator.the body is heavy and has good rigidity.
3.the axis of rolling can be filled itself, which has reduced the adjust time.
4.the hydraulic and electrical operation make the machine stable. The action can be automatic or manual mode.
