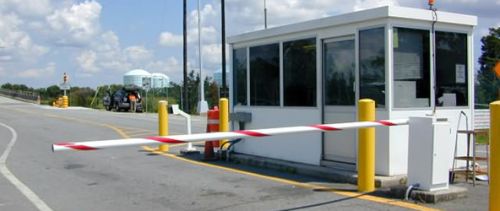

Contact SupplierWe are offering traffic control drop arms. Choose from the following series:
ua-10 – up to a 10’ arm length
ua-15 – up to a 15’ arm length
ua-12 – up to a 12’ arm length
ua-20 – up to a 20’ arm length
overview:
maintenance-free torque motor drive unit
unlimited continuous operation
simple mechanical construction
extended reliability with low maintenance
opening speed: 2.3 seconds
optional opening speed: 1.2 seconds (up to 12’ arm)
barrier arm lengths up to 20 feet
articulating (folding) arm option
integral logic controller
easily configured for specific installation requirements
plug-in inductive loop detectors
isolated control logic input and output signals
led indicators for status and diagnostics
manual or fully automatic operation
field configurable for maximum flexibility
automatic drop arm raise on power failure
technical data
power fail protection automatic arm raise on power failure.
Power requirements:
voltage 115v ac+-10%, optional 230v. Ac
frequency 60 hz single phase, (50 hz 230v.)
current consumption 80 va typical.
Environmental:
environmental splash proof housing ip55. Conformal coating on printed circuit boards
perating temperature 14° to 131° fahrenheit (-10° to 55° centigrade).
0.064in. (1.6mm) galvanized steel. (stainless steel 3cr 12 optional.)
finish epoxy powder coated (exterior grade).
Standard color:
white (other colors available on request.)
access:
side door 27in. (h) x 10in. (w), (690mm x 260mm) hinged and lockable.
Lid top lid, internally double latched, removable.
Mounting method:
bolt down, using four anchor bolts.
Barrier arm material:
extruded aluminum tubing. Break-away and wood arm (adapter available.)
optional wood arm adapter up to 12′ max length.
