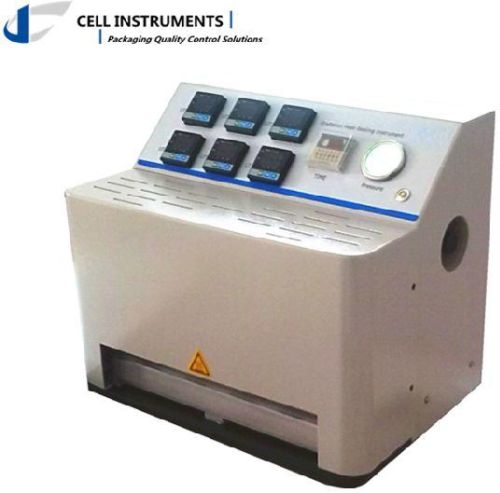

BOPP Film Heat Seal Tester, Power : 110V or 220V

We are offering bopp film heat seal tester. Bopp film heat seal tester is professionally designed for the precise measurement of sealing temperature, time and pressure. Bopp film heat seal tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc.bopp film heat seal tester conforms to standards of astm f2029, qbt 2358 and ybb 00122003.
bopp film heat seal tester features
1. 7 inch tft touching screen makes parameter setting and operation easy and convenient for heat seal tester.
2. plc for precise dwell time and sealing pressure control
3. p.i.d. For precise sealing temperature control
4. uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating
5. multiple groups of test parameters can be saved to reduce setting time and eliminate human error
6. independent heating of upper and lower sealing jaws on the model of heat seal tester.
7. sealing jaw customization available in term of dimension, shape and surface
bopp film heat seal tester technical specifications
sealing temperature room temperature ~ 300℃
deviation ±0.2℃
dwell time 0.1 s~9999s
sealing pressure 0.15 mpa ~ 0.7 mpa
sealing jaws 330mm×10mm(sealing surface)(customization available)
double heating of upper and lower jaws
gas pressure 0.7 mpa of air
dimensions 455mm (l) *320mm (w) *440mm (h)
port size ф6 mm pu hose
power ac 220v 50hz
bopp film heat seal tester standard
astm f2029, qbt 2358, ybb 00122003
