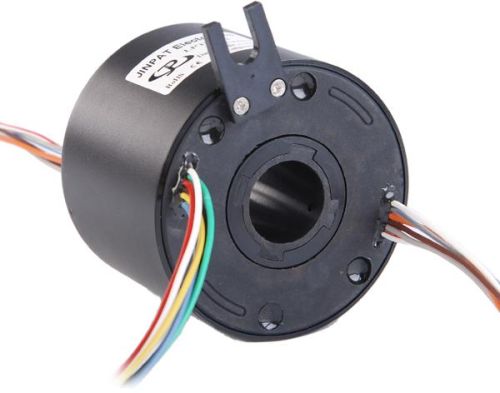

Bore Slip Ring For Radar Antenna, Brand Name : jinpt

We offer bore slip ring for radar antenna.
The lpt038 provides an economical, readily available solution when a
compact through-bore configuration is required. This unit provides a
38.1mm through-bore for routing hydraulic or pneumatic lines and a
compact 86mm outside diameter for minimal space applications. The
15 amps per circuit are available in 6, 12, 18 and 24 ring configurations
in 4 housing lengths. Similar in design to our very popular lpt038
series, this design features long life, fiber brush contact technology for
ultimate performance in many challenging applications. Fiber brushes
do not require lubrication and produce virtually no wear debris, for
maintenance free, life time operation.
features
6, 12, 18 and 24 circuits models
precious metal contacts
5 amps rings
precision ball bearings for long life
speed up to 500 rpm continuous
compact size
sealed units available
flying leads
fully compatible with both analog and ttl control level signals
rugged black anodized aluminum construction
advantage
unique signal handling performance with minimal electrical noise
compact design to fit in the most demanding space constraints
low torque minimizes system torque budget
rapid delivery
