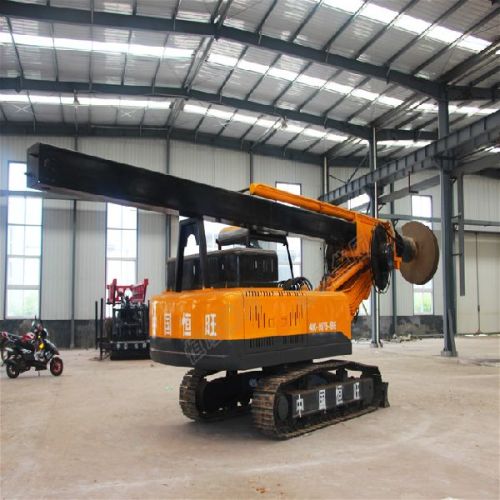

Bored Pile Earth Auger Rotary Interlocking Drilling Auger

Rotary Drilling Auger is Easy and flexible opearation: all actions including travel, dozer, turnable swing, work devices plie rotation and feed ect, are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator's load and advance the control stability.1 Bored Pile Earth Auger drill frame angle display is fit in the cab, which make operation clearly.2 Pile Earth Auger the machine is supplying special clamping fistures for piles, easy assembling and disassembling, high efficiency.3 Pile driver machine  is supplying pile guding device which can ensure the verticality of pile drill.4 Pilling rig Safety and reliable key parts: YANMAR-3TNV82A engine from Japan, hydraulic system main pump, main valve, swing motor travel motor are all fron KYB Japan.swing motor travel motor are all fron KYB Japan. Technical Parameters Parameters/Model HWDR150 HWDR200 HWDR260 Outsize Working Size(length×Width×Height) m 5.9×2.3×10.5 7.1×2.6×12 8×2.8×11.5 Transport Size(length×Width×Height) m 8.2×2.3×3.25 10×2.6×3.38 10×2.8×3.55 Machine Weight t 17 22 26 Max Drilling Diameter mm 1200 1400 1400 Max Drilling Depth m 15 20 25 Engine Brand  Yuchai Cummins Cummins Model  4A115Z 6BT5.9-C150 6BTAA5.9-C205 Rated  Power kw/rpm 86/2400 110/2300 153/2000 Hydraulic Flow Woring Pressure Main Pump Mpa 30 30 30 Secondary Pump Mpa / / / Max Flow  Main Pump L/min 2×63 2×63 2×80
