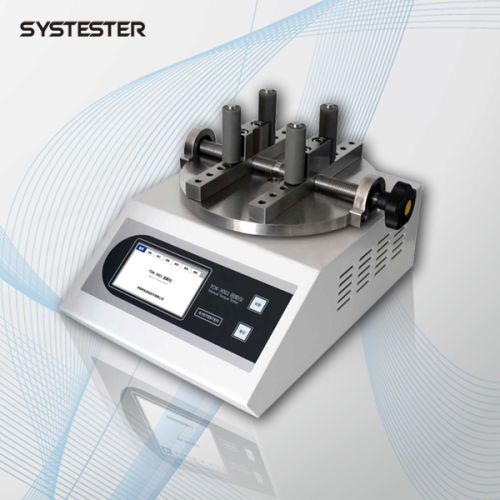

Bottle Caps Torque Force Testing-torque Tester,SYSTESTER Testing Machi

Bottle caps torque force testing-torque tester,systester testing machi application:
torque tester is used for evaluating the torque retention of continuous thread closures on containers, and measuring the torque required to tighten or unscrew the closure from a container.
bottle caps torque force testing-torque tester,systester testing machi features:
1.patent technology, touch screen operation, real color tft lcd display.
2. Test result and curve display.
3. High-accuracy torque sensor inside.
4. Peak, real-time, present test mode
5. Clockwise, un-clockwise test.
6. Result with multiple units.
7. Overload warning.
8. Low power consumption.
9. Rs232 communication port.
10. Professional computer software support.(optional)
bottle caps torque force testing-torque tester,systester testing machi technical indexes:
range: 20nm, 40nm, 50nm
accuracy: 0.3%fs
reading: 0.001 nm
sample diameter: ф2mm ~ ф180mm
power supply: ac 220v 50hz
dimension: 245mm(l)*340mm(b)*238mm(h)
net weight: 22kg
bottle caps torque force testing-torque tester,systester testing machi standards:
astm d2063, astm d3198, astm d3474, gbt 17876, bbt 0025
configuration
delivery: mainframe ; micro-printer
optional: professional computer software, communication cable.
