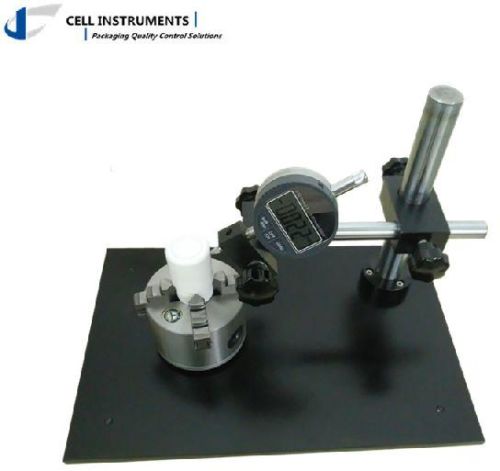

Contact SupplierWe are offering bottle coaxial tester is for the perpendicularity measurement of various bottle containers in food, cosmetics and pharmaceutical industries. The coaxial tester is easily-operated with high centering and measurement precision and it is widely used in bottle makers, users and research facilities for verticality deviation.
Principle
the bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 12 of the difference between the two is the vertical axis deviation value.
Bottle coaxial tester technical data
sample diameter: 5mm-150mm
test rage: 0-12.7mm
division value: 0.01mm
measurable height: 15mm-300mm
dimension: 330mm(l)*220mm(w)*430mm(h)
weight: 23kg
standards:
gb 8452, qb 2357, qbt 1868, ybb00192003
