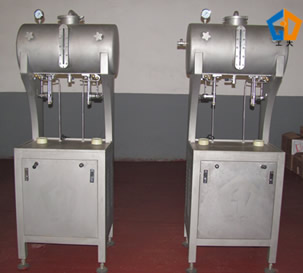

Bottle Filling Machine, Brand Name : GD

we are offering bottle filling machine.
1. specification
model
gz06
size of plate form
600mm×500mm
height of the palt form
600mm
size of the machine
600mm×500mm×1600mm
weight
100kg
production capacity
300-500 bottles per hour
2. technology specification
pressure of the
0.15----0.2mpa
pressure of the air
0.4------0.6mpa
pressure of the co2
0.15----0.2 mpa
pressure of the cylinder
0.3-----0.4 mpa
voltage of the electricity
220v
3. the main framework : frame, srorage canister , filling valve , vacuun system , lift and down system , pipelines etc.
4. features : the main material is stainless steel , all the surface is polished , easy to operate and clean
