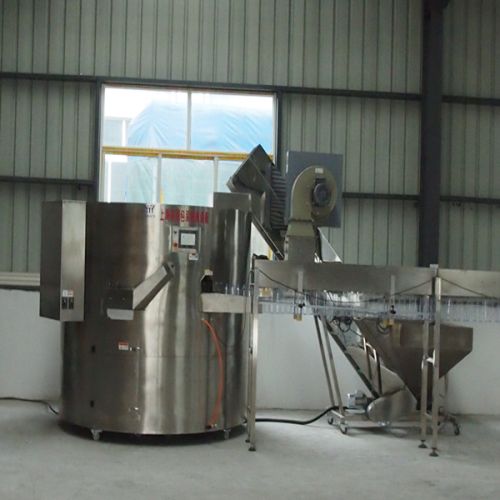

Bottle Unscrambler

We are offering Bottle unscrambler.
1.Applicable Bottle types
Various kinds of bottle for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.This machine apply to pet bottle for different bottle from 100ml to 2000ml in one machine.
LPJ serial full-automatic bottle unscrambler is the support equipment for the soft beverage filling equipment, applicable for the orderly arrangement of messy PET bottles and the delivery of them to production line.
The frame is made of excellent stainless steels; and other parts, non-toxic and endurable materials. The adopted key parts of the electric and pneumatic systems are famous brands. The whole process is controlled by PLC, so the machine has a low fault rate but a high reliability.
2、work principle
Our machine according to the principle of orthocenter and eccentricity .
The bottle from bottle hopper to host machine by the elevator. During the process of rotation The bottle neck are the same direction because the eccentricity effect. The bottle vertically Down. Then output .this is work way of machine.
As the bottle vertically down ,so the work unit position small ,and take up the small location . The machine has many work units . All the work units output bottles in the same time.So the machine speed is very quickly.
2. Machine advantages:
have got national patent .
take up samll location.
do not change the mould ,can arrange different bottle .
the prices is more competitive than others.
II 、specification of technical :：
Model YY-LPJ2000 YY-LPJ2200 YY-LPJ2400 YY-LPJ2600
Product speed (bh) 12000 15000 18000 24000
power(kw) 3 3 3.5 3.5
voltage(v) 220 220 220 220
Suitable for bottle diameter (mm) 28-125 28-125 28-125 28-125
dimensiton(mm) ∮2000*1800 ∮2200*1800 ∮2400*1800 ∮2600*1800
Air consumption（nimin) 500 500 500 500
Weight(kw) 1350 1550 1850 2500
