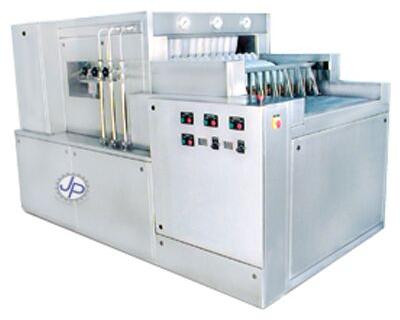

Bottle Washing Machine

Competencies

• » Total CGMP model
• » Sleek, sturdy and compact design
• » PLC-HMI-touch screen
• » Frame Made from SS-structure.
• » All controls from panel .

• » Complete Fail safe Design
• » Water recycling arrangement is possible as per requirement
• » Washing cycle and washing timing can be adjusted as per requirement
• » Easy changeover of changeparts
• » Built in two/three pumps and two/three tanks
• » Inner and outer vial washing ensure total cleaning
• » Washing chamber having various spray zones and spray duration is electrically controlled
• » Rotary Mechanism, PLC controlled with touch screen HMI
• » Very less maintenance required
• » Spray duration is electrically controlled.
• » Machine provided with SS-316 pumps and SS-316 tanks
• » Turn table available as accessory

• » 415V, 3-phase, 50hz electric supply
• » Electric load:- 5HP
• » Air:- 2 CFM @ 4 to 6 kg/cm2
• » Water or liquid as per tank size

APPLICATION

• » To clean bottle ( Plastic and Glass) with water or any liquid
• » Bottle diameter:-30 to 100mm
• » Bottle Size:- 50-150mm

* The output of the machine depend on Bottle geometry.

* Specification subject to change without prior notice
