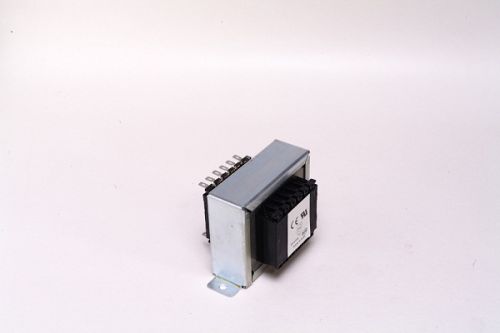

Polished Audio Line Matching Transformer, Feature : Cost Effectiveness, Durable, Easy To Use

₹ 500 - ₹ 1,000 / Piece

MOQ500 Piece
FinishingPolished
Packaging TypeBox
ConditionNew
PhaseSingle Phase
Supply TypeManufacturer, Exporter
Preferred Buyer Location India, United Arab Emirates, Canada, Spain, Netherlands, Singapore, United Kingdom, United States

Company Information

4.5/5

Member Since 9 Years
Nature of Business Manufacturer
GST No. 27AAGFV5990A1Z0

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
FeatureCost Effectiveness, Durable, Easy To Use
ConditionNew
FinishingPolished
Packaging TypeBox
PhaseSingle Phase
CertificationISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

The purpose of this Transformer is to match the Impedance of the loudspeaker or a number of loudspeakers to the optimum load of the tube or transistor. In other words, the transformer transforms the Impedance of the speaker, so that the impedance which it presents to the primary winding is equal to the load of the Output stage active element (tube to transistor).

Dual Outputs: 4 & 8 Ohms.
Maximum Ambient Temperature: 40 deg C.
Frequency Response: 40Hz to 20,000Hz (-2dB).
Connections: 150 +/- 10mm multi stranded PVC wire. Stripped and Tinned.

Specification

Model	Volts (V)	Power Rating (W)	Impedance (Ohm)	Transformer Size	L	W	H	Mounting Type
M–70001	70	4 – 2 – 1 – 0.5	1.25K-2.5K-5K-10K	INT-41 x 16	43	18	35	"U" Bracket
M–70002	70	5 – 2 – 1 – 0.5	1K-2.5K-5K-10K	INT-41 x 16	43	18	35	"U" Bracket
M–70003	70	8 – 4 – 2 – 1	625-1.25K-2.5K-5K	T-12A x 16	51	19	42	"U" Bracket
M–70004	70	10 – 7.5 – 5 – 2.5	500-666-1K-2K	T-12A x 16	51	19	42	"U" Bracket
M–70005	70	16 – 8 – 4 – 2	312-625-1.25K-2.5K	T-23 x 19	60	22	49	"U" Bracket
M–70006	70	20 – 15 – 10 – 5	250-333-500-1K	T-23 x 19	60	22	49	"U" Bracket
M–70007	70	25 – 20 – 10	200-250-500	T-31 x 25.4	70	29	58	"U" Bracket
M–70008	70	32 – 16 – 8	156-312-625	T-31 x 25.4	70	29	58	"U" Bracket
M–70009	70	45 – 30 – 20	110-167-250	T-31 x 25.4	70	29	58	"U" Bracket
M–70010	70	50 – 30 – 15	100-167-333	T-15 x 31.75	76	35	67	"L" Clamps
M–70011	70	60 – 45 – 30	133-167-222	T-33 x 38.1	84	40	72	"L" Clamps
M–100001	100	5 – 2 – 1 – 0.5	2K-5K-10K-20K	INT-41 x 16	43	18	35	"U" Bracket
M–100002	100	6 – 4 – 2 – 1	1.67K-2.5K-5K-10K	INT-41 x 16	43	18	35	"U" Bracket
M–100003	100	10 – 7.5 – 5 – 2.5	1K-1.33K-2K-4K	T-12A x 16	51	19	42	"U" Bracket
M–100004	100	15 – 10 – 7.5 – 5	666-1K-1.33K-2K	T-23 x 19	60	22	49	"U" Bracket
M–100005	100	20 – 15 – 10 – 5	500-666-1K-2K	T-23 x 19	60	22	49	"U" Bracket
M–100006	100	25 – 20 – 15 – 10	400-500-666-1K	T-31 x 25.4	70	29	58	"U" Bracket
M–100007	100	30 – 20 – 15 – 10	333-500-666-1K	T-31 x 25.4	70	29	58	"U" Bracket
M–100008	100	35 – 30 – 25 – 10	285-333-400-1K	T-31 x 25.4	70	29	58	"U" Bracket
M–100009	100	50 – 40 – 30 – 20	200-250-333-500	T-15 x 31.75	76	35	67	"L" Clamps
M–100010	100	60 – 45 – 30	167-222-333	T-15 x 31.75	76	35	67	"L" Clamps
M–100011	100	75 – 60 - 45	133-167-222	T-33 x 38.1	84	40	72	"L" Clamps
