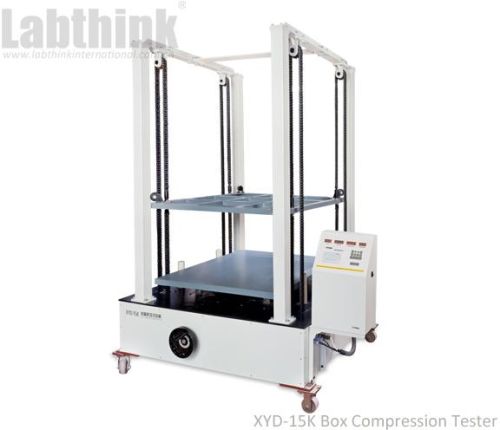

Box Compression Tester

Xyd-15k box compression tester can be used to measure the compressive resistance, deformation and stacking capability of cartons, beehive crates, plastic tanks (for edible oil and mineral water), paper tanks, paper cases, ibc tanks and other packages.
box compression tester conforms to various national and international standards:
iso 12048, astm d642, astm d4169,tappi t804, jis z0212, gbt 16491, gbt 4857.4
features:
1.high standard box compression tester for sale is controlled by micro-computer with menu interface, pvc operation panel and the testing process is automatic
2.4 testing modes: deformation under defined load, load under defined deformation, maximum load and stack tests
3.dynamic digital-display of the test number, specimen deformation, real-time load and initial load
4.single-phase power and direct-current drive guarantee the adjustability, accuracy and stability of test speed
5.overload protection, maximum stroke protection and error alert for safe test operation
6.light-weight design, suitable for various floor loads
7.equipped with micro printer which is convenient for the printing of test data
specifications:
load cell capacity 15 kn or 45 kn (optional)
accuracy 1% fs
force resolution 1 dan
deformation resolution 0.1 mm
test speed 5 mmmin, 10 mmmin, 12.7 mmmin
test space 1 m (l) x 1 m (w) x 1.3 m (h)
power supply ac 220v 50hz
instrument dimension 1.2 m (l) x 1.5 m (w) x 2.3 m (h)
net weight 800 kg
