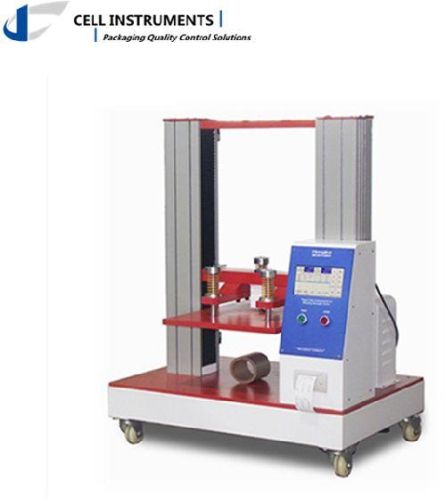

Box Compression Tester, Brand Name : Cell Instruments

Box compression tester is for the compression strength, crushing force and stacking ability of medium and small size packaging like corrugated carton.
box compression tester technical feature
1. lcd display, pvc operation manual, human design
2. microcomputer processing system, automatic measurement, test result intelligent judging, self-return
3. microcomputer data collecting and computing, microprinter
4. real-time display of compression resistance force, deformation and changing curve
5. three test modes of compression resistance, stacking and compression at fixed time and pressure
6. synchronous motor
7. accurate thread lead screw drive system
box compression tester technical data
pressure range: 0-10kn
force resolution: 0.1n, display error: ±2%
display variation: ≤2%, back to zero error: ±0.2%fs
deformation measurement accuracy: ±1mm
compressing speed adjustable range: 5mmmin~90mmmin
compressing speed relative error: ±3%(within 5~90mmmin)
standard compressing speed: 12mmmin
stacking test speed: 5mmmin
lower platen stroke: 800mm
test space: 400mm(l)*600mm(w)*600mm(h) (other space available)
upper and lower platen parallelism degree: ≤1mm
dimension: 850mm(l)*600mm(w)*1100mm(h) (varies with different test space)
weight: 200kg (varies with different test space)
standards
astm d642, astm d4169, iso12048, tappi t804, jis z0212, gbt 16491, gbt 4857.4
