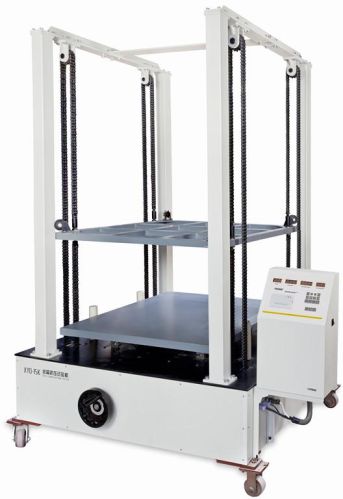

Box Compression Tester, Brand Name : Labthink

We are offering box compression tester.
Xyd-15k box compression tester is designed to measure the compressive resistance, deformation and stacking capability of cartons, beehive crates, plastic tanks (for edible oil and mineral water), paper tanks, paper cases, ibc tanks and other packages.
1.the instrument is controlled by a micro-computer with menu interface, pvc operation panel and the testing process is automatic
2.4 testing modes: deformation under defined load, load under defined deformation, maximum load and stack tests
3.dynamic digital-display of the test numbering and load, specimen deformation and initial load
4.single-phase power and direct-current drive guarantee the adjustability, accuracy and stability of test speed
applications
1.deformation under defined load
2.load under defined deformation
3.maximum load
4.stack test
technical specifications:
test range :15kn or 45kn (optional)
accuracy :1% of reading value
force resolution :1 dan
box compression tester conforms to various national and international standards:
iso 12048, astm d642, astm d4169,tappi t804, jis z0212, gbt 16491, gbt 4857.4.
