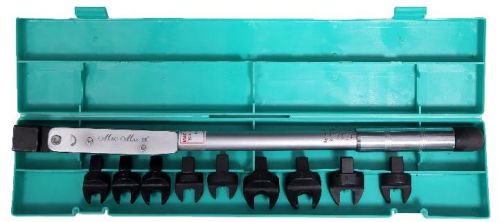

Polished Interchangeable Torque Wrench, Packaging Size : 10 Pieces Set

Company Information

Focal Point, Dera Bassi, Punjab

5.0/5

(1)

Ask for more detail from the seller

Report incorrect details

Model No.	Torque Range						Square Drive	OAL at Min Cap. (mm)	Weight Appx. (kgs)
	lbf. ft		Nm		kgf. m
	Range	LC	Range	LC	Range	LC
ITW-10	2-10	0.5	3-14	0.5	0.3-1.4	0.1	5/8"	342	0.6
ITW-25	5-25	1	5-35	2	0.5-3.5	0.2	5/8"	365	0.65
ITW-50	8-50	2	12-68	2	1-7	0.2	5/8"	490	1.15
ITW-100	20-100	2	25-135	5	3-14	0.5	5/8"	587	1.75
ITW-160	40-160	5	50-220	5	5-23	1	5/8"	600	2.45
ITW-250	50-250	5	70-340	10	7-35	1	5/8"	804	3.10

S.No.	Square head size (inch)	A/F size (mm)	Length (mm)	Breadth (mm)	Thickness (mm)	Weight Appx. (kgs)
1	5/8	7	56.0	29	9	0.1
2	5/8	8	56.0	29	9	0.1
3	5/8	9	56.0	31.5	9	0.1
4	5/8	10	56.0	31.5	9	0.1
5	5/8	11	56.0	32.6	9	0.1
6	5/8	12	56.0	33.8	9	0.1
7	5/8	13	56.0	35.0	9	0.1
8	5/8	14	56.0	36.5	9	0.1
9	5/8	15	56.0	37.8	9	0.1
10	5/8	16	56.0	39.0	9	0.1
11	5/8	17	56.0	40.3	9	0.1
12	5/8	18	58.0	46.6	11	0.15
13	5/8	19	58.0	47.8	11	0.15
14	5/8	20	58.0	49.0	11	0.15
15	5/8	21	58.0	50.3	11	0.20
16	5/8	22	58.0	51.5	11	0.20
17	5/8	24	58.0	51.5	11	0.20
18	5/8	25	68.0	59.8	14	0.25
19	5/8	26	68.0	61.0	14	0.25
20	5/8	27	68.0	62.2	14	0.25
21	5/8	28	68.0	63.5	14	0.28
22	5/8	29	68.0	64.8	14	0.28
23	5/8	30	68.0	66.0	14	0.35
24	5/8	32	68.0	68.5	14	0.35
25	5/8	33	68.0	69.8	14	0.38
26	5/8	34	68.0	71.0	14	0.38
27	5/8	35	68.0	72.8	14	0.40
28	5/8	36	68.0	73.5.0	14	0.40
