Tin Plated Braided Copper Flexibles

₹ 1,250 - ₹ 1,500 / Kilogram

MOQ10 Kilogram
MaterialCopper
Surface FinishingTin Plated
Conductor MaterialElectrolytic Copper Cu-ETP (grade C101), Oxygen Free Copper
ColorCopper
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 17 Years
Nature of Business Manufacturer
GST No. 27AACPJ1600P1ZT

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialCopper
Conductor MaterialElectrolytic Copper Cu-ETP (grade C101), Oxygen Free Copper
Surface FinishingTin Plated
ColorCopper
ApplicationEarthing Straps, Electrical Components
FinishWide Range Of Finishes
BrandJANS
PlatingTin Plated
ThicknessSpecified Width And Thickness
FlexibilitySuper Flexible

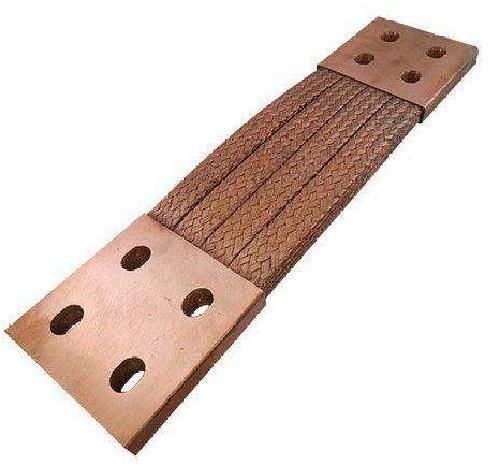

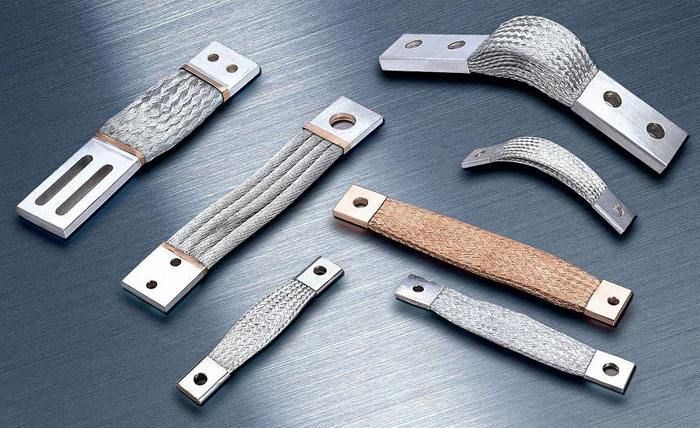

Our super flexible flat copper braids (copper tapes) are made to order from 0.05 mm diameter wire are braided into a tube followed by a rolling process to flatten them to the specified width and thickness. They are used as earthing straps and in numerous electrical components. These super flexible flat copper braids can be made in electrolytic copper Cu-ETP (grade C101) or oxygen free copper and in a wide range of finishes. Tin plated super flexible copper braid is made from 0.071 mm dia wire. The braid can be folded back on itself, as shown in the pacture. All our copper braids are RoHS compliant.
