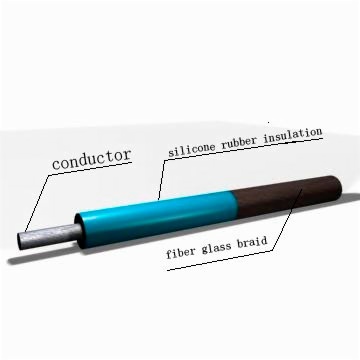

Braided Silicone Rubber Wire, Brand Name : Orient

MOQ5000 Meter
Brand NameOrient
Applicationhome appliance, electronic equipment etc.
Functionhigh temperature upto 200'C
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

we are offering Product Features: ·Rated Voltage:300V ·Rated temperature:-60℃～+200℃ ·Conductor: multi-piece or single piece nickel-coated, tin-coated, silver-coated copper....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

we are offering Product Features:
·Rated Voltage:300V
·Rated temperature:-60℃～+200℃
·Conductor: multi-piece or single piece nickel-coated, tin-coated, silver-coated copper wire
·Insulator: silicone rubber
·Apply for high temperature environment such as electron, electrical household appliance, lamps and lanterns, combustion equipment.
Items
Technical datas
Applied standard
Outer appearance
Smooth, even, without loose
UL 758
UL 62
UL 1581
Spark test
AC3KV/ 0.15 S
Vol. test
1.5 KV/1 min
Insulation resistance
≥30.5MΩ.KM
mechanical properties of insulation material
Before aging
Tensile strength
≥3.45N/mm²
elongation at break
≥100%
After aging
(210±1℃×1440h)
Tensile strength
60% of the tensile strength before aging
elongation at break
25% of the elongation before aging
Poisonous substance control
Comply with ROHS rule
EU—2002/95/EC

Additional Information

Payment Terms L/CT/T
Port of DispatchShanghai
Packaging Detailspacked in roll or on wooden reel, then put in carton, 500-1000cartons/20'FCL
Delivery Timewithin 25days
