Contact SupplierWe are offering braiding machine.
Description:

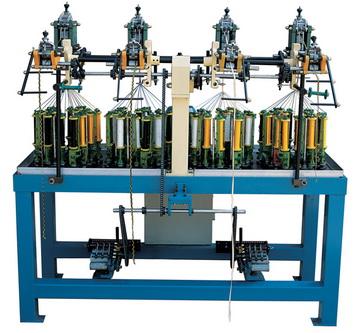

1). Product name: braider / braining machine / high speed braider
2). Function: for braiding various kinds of belts, cords, ropes, shoelaces, tapes, hollow tubes, etc. Suitable for various fibers;
3). Feature and spec:
braiding head: 1-4;
spindle per head: 6-96;
gauge: 90-130;
bobbin capacity: d44mm l102mm; d47mm l157mm;
reliable and efficient after-sales service;
free-charge technical training;
modle heads spindles gauge(mm) speed (rpm) power (kw) application
r2x16 2 16 110 75 1.1 round braiding
r2x32 2 32 90 42 1.1 round braiding
r4x8 4 8 110 150 0.75 round braiding
r4x16 4 16 90 84 0.75 round braiding
f2x33 2 33 90 25 1.1 flat braiding
f4x13 4 13 90 60 0.75 flat braiding
f4x21 4 21 90 40 0.75 flat braiding
