Brake Pedal

MaterialMetal, Plastic
Packaging TypeMulticolor
Number Of FlowerMotorcycle Brake Pedal
Components IncludedSplit Pin, Plain Washer, Rod Brake, Pin, Lever Brake Tubular, Washer Plain, Pin Cotter, Spring, Pin Snap, Nut Hex, Washer Spring, Pin, Brake Adjusting Nut, Bolt, Torque Rod, Damper
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are looked upon as one of the dependable Brake Pedal Suppliers in India. The Motorcycle Brake Pedal offered by us includes Split Pin, Plain Washer, Rod Brake, Pin, Lever Brake Tubular, Washer Plain, Pin Cotter, Spring, Spring, Pin Snap, Nut Hex, Washer Spring, Pin, Brake Adjusting Nut, Bolt, Torque Rod and Damper. Branded Automotive Brake Pedal is also available in the array. Additionally, customers are eased with the availability of the Bike Brake Pedal at the most reasonable prices.

View More Details

Send Enquiry

Technical Specifications

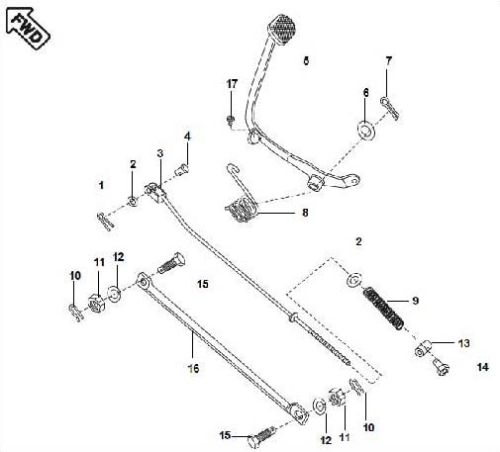

Fig No.	Part No.	Description	Qty / Veh.
1	39 0808 08	Split pin	1
2	DF 1910 67	Plain Washer	2
3	DM 1910 10	Rod Brake	1
4	30 19 1038	Pin	1
5	DM 1910 16	Lever Plain	1
6	39 0805 11	Washer Plain	1
7	39 0797 08	Pin Cotter	1
8	30 19 1031	Spring	1
9	30 1910 67	Spring	1
10	39 0807 08	Pin Snap	2
11	39 0708 15	Nut Hex.	2
12	DF 1910 67	Washer Spring	2
13	30 1910 38	Pin	1
14	30 1910 36	Brake adjusting nut	1
15	30 1510 16	Bolt	2
16	DF 1510 161	Torque rod	1
17	DD 1610 78	Damper	1
