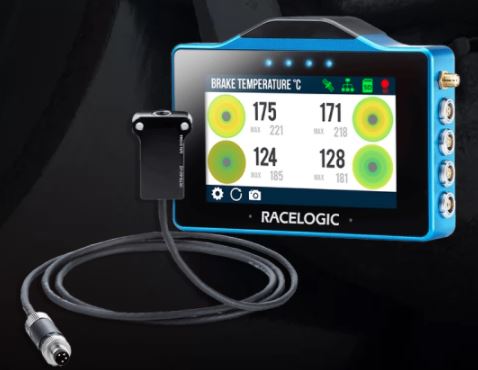

Brake Temperature Monitoring System, Brand Name : Racelogic

Product Discription:

The RACELOGIC Brake Temperature Monitoring System measures, logs and displays the surface temperature of the brake disc, providing invaluable information to the test driver whilst on track

Technical Specifications

• Temperature Measurement Range: -20 °C to 950 °C
• Accuracy: ±2.0% FS for -20° C < Tp < 85° C
• Field of View (FOV): 60° x 8°
• Number of Channels: 16
• Thermal Time Constant: 2 ms
• Effective Emissivity: 0.01 – 1.00 (default = 0.55)
• Spectral Range: 8 to 14 μm
• Recommended Supply Voltage: 5 to 8 V
• Supply Current: 30 mA
