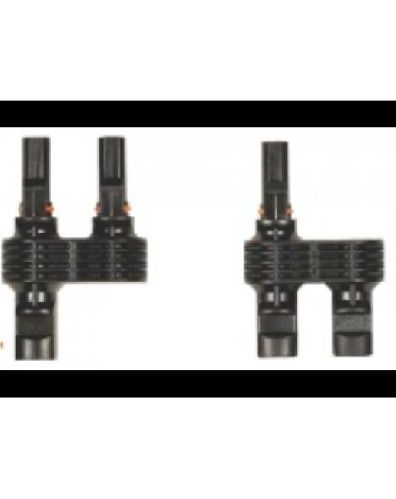

Branch Connector

Safety ClassII
Rated Current25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2)
Operating Temperature-45°C to 90°C
Withdrawal Force≥50 Nm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Product CodeBranch Connector
Contact Resistance<0.5 Nm
Withdrawal Force≥50 Nm
Degree of ProtectionIP 67
Test Voltage6 KV (50 Hz)
Safety ClassII
Insertion Force≤50 N
DescriptionSpecification
Rated Current25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2)
Rated Voltage1000 V DC
Operating Temperature-45°C to 90°C
Contact MaterialCopper with Tin Plating
Brand NameElmex
Suitable Cable2.5 mm2/4.0 mm2/6.0 mm2

‘elmex’ has developed branch connectors EBPV4M and EBPV4F to facilitate parallel connection of photovoltaic male or female straight connectors depending on on-site application. The branch connector has 3 branches, 2 for inputs either male or female and 1 for output either male or female. ‘elmex’ branch connector are constructed using simple metallic component, optimizing its performance. The branch connector is easy to connect and disconnect without help of any accessory and this it is easy to use. ‘elmex’ branch connector is IP67 protected and has mating compatibility with ‘elmex’ make straight connector EMPV4..
