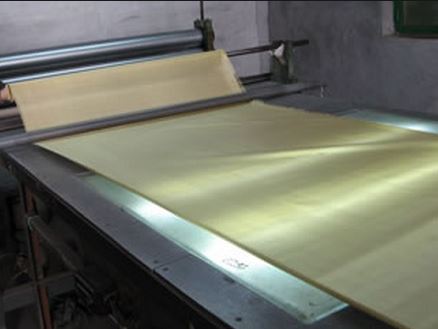

Brass Wire Mesh

Brass wire mesh
material:â brass wire, phosphor bronze wire, or copper wire.
Application:â seperation and sifting kinds pellet, grain, porcelain earth and glass, chinaware printing, filter liquid, etc.
Specifications:
brass wire cloth 6 meshinch - 160 meshinch;â
copper wire cloth 10 meshinch - 60 meshinch;â
phosphor bronze wire cloth 120 mesh - 360 meshinch.
Width:â 0.914m, 1m, 1.5m.
Lengthroll:â 30m.
Weaving methods:â plain weave, twill weave or dutch weave.
Mesh wire dia. opening(mm)
swg mm inch
6 22 0.711 0.028 3.522
8 23 0.610 0.024 2.565
10 25 0.508 0.020 2.032
12 26 0.457 0.018 1.660
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.840
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.010 0.540
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60ã�50 36 0.193 0.0076 -
60ã�50 37 0.173 0.0068 -
60 37 0.173 0.0068 0.250
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.170
100 42 0.012 0.004 0.152
120ã�108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.120
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076
