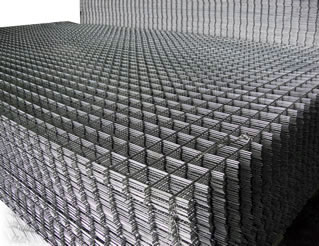

BRC Wire Mesh

We manufacture as well as supply precision-made BRC Wire Mesh in the global market. The Welded Wire Mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. These BRC Wire Meshes, we export, are steel reinforcement material in concrete and used to replace the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. We offer the BRC Wire Meshes in varied sixes and specifications to cater to the diverse requirements of the clients. Uses

• Agricultural sectors
• Industrial sectors
• Transportation sectors
• Horticultural sectors
• Food procuring sectors
• Mines
• Gardening

Specifications

KIMMU Ref. No.	MS 145 or BS 4483 Ref. No.	Main Wires			Cross Wires			Mass Per Unit Area (kh/m2)
		Size (mm)	Spacing (mm)	Steel Area (mm2/m)	Size (mm)	Spacing (mm)	Steel Area (mm2/m)
Square Mesh
 RA 13	 A 664	13	200	664	13	200	664	 10.42
 RA 12	 A 565	12	200	565	12	200	565	 8.88
 RA 11	 A 475	11	200	475	11	200	475	 7.46
 RA 10	 A 393	10	200	393	10	200	393	 6.16
 RA 9	 A 318	9	200	318	9	200	318	 4.99
 RA 8	 A 252	8	200	252	8	200	252	 3.95
 RA 7	 A 193	7	200	193	7	200	193	 3.02
 RA 6	 A 142	6	200	142	6	200	142	 2.22
 RA 5	 A 98	5	200	98	5	200	98	 1.54
 RA 4	 A 63	4	200	63	4	200	63	 0.99
Rectangular Mesh
 RB 13	 B 1328	13	100	1328	8	200	252	 12.4
 RB 12	 B 1131	12	100	1131	8	200	252	 10.86
 RB 11	 B 950	11	100	950	8	200	252	 9.44
 RB 10	 B 785	10	100	785	8	200	252	 8.14
 RB 9	 B 636	9	100	636	8	200	252	 6.97
 RB 8	 B 503	8	100	503	8	200	252	 5.93
 RB 7	 B 385	7	100	385	7	200	193	 4.53
 RB 6	 B 283	6	100	283	7	200	193	 3.73
 RB 5	 B 196	5	100	196	7	200	193	 3.05
Long Rectangular Mesh
 RC 13	 C 1328	13	100	1328	8	400	126	 11.41
 RC 12	 C 1131	12	100	1131	8	400	126	 9.87
 RC 11	 C 950	11	100	950	8	400	126	 8.44
 RC 10	 C 785	10	100	785	6	400	71	 6.72
 RC 9	 C 636	9	100	636	6	400	71	 5.55
 RC 8	 C 503	8	100	503	5	400	49	 4.34
 RC 7	 C 385	7	100	385	5	400	49	 3.41
 RC 6	 C 283	6	100	283	5	400	49	 2.61
 RC 5	 C 196	5	100	196	5	400	4	 1.93
Small Square Mesh
 RDA 13	 DA 1328	13	100	1328	13	100	1328	 20.85
 RDA 12	 DA 1311	12	100	1131	12	100	1131	 17.76
 RDA 11	 DA 950	11	100	950	11	100	950	 14.92
 RDA 10	 DA 785	10	100	785	10	100	785	 12.32
 RDA 9	 DA 636	9	100	636	9	100	636	 9.98
 RDA 8	 DA 503	8	100	503	8	100	503	 7.90
 RDA 7	 DA 385	7	100	385	7	100	385	 6.04
 RDA 6	 DA 283	6	100	283	6	100	283	 4.44
 RDA 5	 DA 196	5	100	196	5	100	196	 3.08
 RDA 4	 DA 126	4	100	126	4	100	126	 1.97

Note : Any kind of specification are decided by customer̢۪s requirement (Cut-to-Size available).
