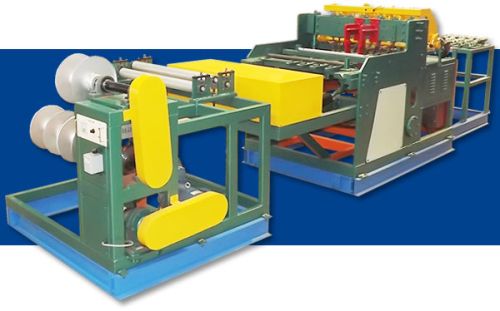

Brick Force Mesh Welding Machine, Brand Name : jiaoyang

We offer brick force mesh welding machine.
function features:
1.this machine adopts synchronous control technique,welding time and cent-control welding is composed of digital and integrated electric circuit.this operation is accurate, it has stable function,firm welded point and without welded tracks.
2.not only welding speed is fast bu also it is easy to learn and operate. Servo motor, pulling the wire net by the servo motor auto.
3.the step motor controls fallen wefts structure & drawing materials are automatic(this technologyn has won the national patent zl200520024381.3).so it is even and accurate,the edge of mesh is regular,it is unnecessary to slice the side.
4.drawing mesh adopts the device with elastic tension link(which met the national patent zl200520024380.9)and fixing the mesh,it is easy to regulate mesh hole and mesh size is rather accurate,welding aperture could also adjust randomly within the range.it is automatic to make mesh in pieces and in rolls.
the main parameter
wire diameter
1.6-2.5mm
rated voltage
380v
space of cross wires
65,115,165mm
space of line wires
250-300mm
rated power
72kva
number of electrodes
6 or 8
overall dimension
6x 1.5 x1.5m
welding speed
45 timesmin
application:
widely used in construction,hollow wall reinforcement.
