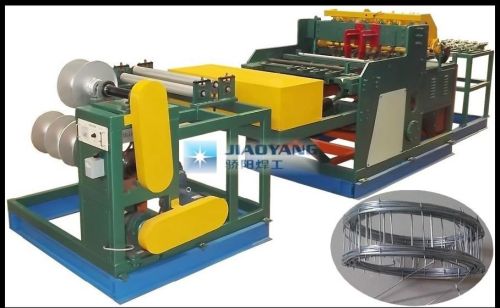

Brick Force Wire Mesh Making Machine, Brand Name : jiaoyang

We are offering brick force making machine.
function features:
1. This machine adopts synchronous control technique, welding time and cent-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point and without welded tracks.
2. Not only welding speed is fast but also it is easy to learn and operate. Servo-motor, pulling the wire net by the servo motor auto.
3. The step motor controls fallen wefts structure & drawing materials are automatic (this technology has won the national patent zl200520024381.3).so it is even and accurate, the edge of mesh is regular, it is unnecessary to slice the side.
4. Drawing mesh adopts the device with elastic tension link(which met the national patent zl200520024380.9)and fixing the mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within the range. It is automatic to make mesh in pieces and in rolls.
the main parameter
wire diameter 1.6-2.5mm rated voltage 380v
space of cross wires 65,115,165mm space of line wires 250-300mm
rated power 72kva number of electrodes 6 or 8
overall dimension 6x 1.5 x1.5m welding speed 45 times
min
application:
widely used in construction, hollow wall reinforcement.
