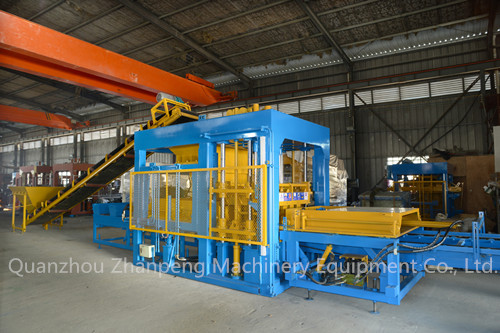

Brick Machine, Packaging Type : blue

We are offering fully-automatic concrete block making machine
a.it reduces the starting current of the motor with a function of soft starting.
B.it realizes the synchronized operation of vibration assembly.
C.braking unit and braking resistor are used to consume the energy to solve the problem of inertia of the motor upon braking.
D.the energy saving effect is remarkable. It saves 20-30% of power.
E.high-effective parts of hydraulic proportion system are imported (more effective and more energy consecutive).
F.imported intelligent plc touch screen and authentic electric components (high automation level and easier operation).
G.arch-breaking rapid-feeding device (has a great advantage for feeding for porous bricks. It makes feeding much evener.)
h.variable-frequency motor and multi-source synchronous vibration system are used.
I.vibration and forming
j.special process of high-temperature thermal treatment (the moulds are more durable and rigid)
k.guiding pole
qt4-15
technical data:
1) size and output of major products:
a) hollow blocks: 390*190*190mm,4pcsmould
b) perforated bricks: 240 x 115 x 90mm, 14pcsmould
c) solid bricks: 240 x 115 x 51mm,26pcsmould
d) color floor tile: 200 x 100x 60mm,16pcsmould
2) pallet size: 980x 560x20mm
3) cycle time: 15 - 23 seconds
4) type of major vibration: table vibration
5) vibration frequency: 3800 - 4500 timesminute
6) rating pressure:25mpa
7) profile size (including pallet delivering device and green block delivering device):9450x 3300 x 2700mm
8) weight: 6200kg.
After-sales service:
1.provide one-year free warranty and life-long service;
2.assist users to formulate production formula;
3.set up completed users’ data and provide a better follow-up service;
4supply spare parts and moulds;
5.provide online interaction platform with customers on the internet and remove troubles for customers at any time;
