Brick Making Machine

We are offering brick making machine. General introduction of qm4-15automatic block making machine
qm04-15automatic block making machine(the machine can work automatically through plc control system) the moulds can be customized according the demand of customers.
qm04-15(4stands for the production of hollow blocks like 390x190x190mm is 4 pieces every mould, and 15stands for every cycle needs about 12-15 seconds).

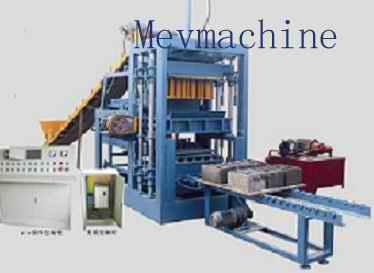

qm4-15automatic block making machine
main technical specifications
standard jc/t920-2003
vibration frequency 4000-5000 cycles/minute
vibration pressure 50kn
production/mould hollow block(390x160x190mm) 5pcs/mould
solid brick (240×115×53 mm) 26 pcs/mould
porous brick（240×110×90mm）12 pcs/mould
cycle time 13-15seconds
production/day(10hours) hollow block (390×190×190 mm) 12000pcs
solid brick (240×115×53mm) 78000pcs
porous brick (200×100×60 mm) 36000pcs
motor power 33 kw
number of workers 2-4 workers
machine dimension 7380*2350*3350mm
gross weight 4200kgs
main materials cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes
products of machine hollow blocks,solid bricks, porous blocks, kurbstones,slope blocks,slabs, interlock bricks and so on.
Main features:
a. The machine can work automatically by itself with plc control system,which is siemens.and if there are something wrong with the machine, plc can tell problems.good design and easy operation make you feel the greatness of technology.
B. the advantages of germany siemens plc control system and siemens touchable screen.
A) plc can control the block making machine automatically without any labour.
b) plc can be set parameters of different materials.
C) plc can shoot problems directly.
C. frame of machine is using super strong steel with special welding techniques.so it is tough and strong.
D. high quality of mould:mould is an important part of machine.the steel is standard materials for making moulds.we have many procedures like adding carbon and boron,back fire for three times, polishing,and so on.and the geomitry of the moulds is standard too.
