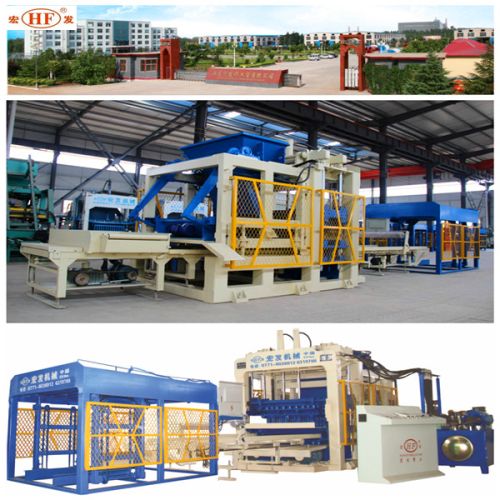

Bricks Making Machine

We are offering bricks making machine.
The newest model of fully automatic brick production line
qt6-15d, qt8-15d, qt10-15d, qt12-15d
can make almost any kinds of bricks, hollow blocks, porous blocks and other paver bricks, interlocking bricks
multi-functional, hydraulic fully-automatic, high-productivity, plc control system
hollow blocks, porous blocks, standard bricks and interlocking paver bricks making machine
selling points of qt6-15d, qt8-15d qt10-15d, qt12-15d brick making machine
1. Use high-quality dry-type vibrating case, therefore avoid the oil leaking problem of wet-type vibrating case.
2. Use around 20 centimeters oversized super square steel for frame, gantry framework and
strong shock-proof.
3. Plug-in mounting soldering mould, use high-quality manganese steel carburize fire processing, to make sure mould wear-resisting, uneasy transformation, extend service-life.
4. Brick making machines are major using hydraulic pressure, mechanical as sideline,
vibration forcing complement.
5. The machine is a comprehensive technology of mechanical, hydraulic and computer automatic control. High efficiency, reasonable design, tight construction, easy operation and convenient maintenance.
6. The compression strength of all block making machines reach more than 15mpa, high degree of density, frost resisting, strong anti-permeability ,sound insulation, heat insulation, excellent heat preservation, accurate artistic overall dimension and low defective index.
7. Computer control vertical synchronous vibration, realize frequency conversion, low frequency feed in raw materials, high frequency molding, mould platform combine vibrating together to make concrete fully liquefying in penetralium in 2-3 seconds.
8. Use imported plc(siemens) intelligent control component to ensure its quality.
9. Use independent integrated hydraulic pressure station, keep away from main engine vibration and dust affect hydraulic pressure system, and with the independent cooler to avoid high temperature for oil.
technical parameters of qt16-15d brick making machine
model exciting force (kn) vibration frequency (hz) total power
(kw) moulding method control method molding cycle
（s） frame dimension (mm) net weight
(t) pallet size
qt6-15d 60 0~60 34 automatic material charging, vibrating and pressing plc full automatic control system 15~20 7160x2000x2800 7 880x680x25
main production specification and theoretical productivity of brick making machine qt6-12d
item size(mm) quantity per mould molding cycle output per hour
hollow brick 390x190x190 6 pcs 15-20 s 1080-1440pcs
porous block 240x115x90 15 pcs 15-20 s 2700-3600pcs
standard brick 240x115x53 32 pcs 15-17 s 6700-7680pcs.
