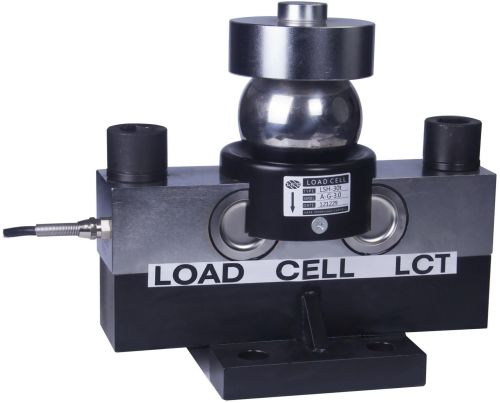

Contact SupplierWe are offering bridge load cell(lsh-a).
Features
material:alloy steel
output adjustment for parallel using.
Mainly used for truck scales,floor scales etc.
Specifications
rated loading:5000,8000kg
accuracy class:±0.015%r.o.
rated output:2.0mvv±0.25%
zero balance:±2%.r.o
non-linearity:±0.03%r.o.
hysteresis,repeatability:±0.03%r.o.
creep in 30 min.:±0.03%r.o.30min
temp.effect on output:±0.03%r.o.10℃
temp.effect on zero;±0.05%r.o.10℃
input resistance:760±10ω
output resistance:760±3ω
safe overload;150%.r.c.
insulation resistance:≥2000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitation,recommend:5~12vdc
excitation,maximum:18vdc
cable,length:φ6mm*16m
