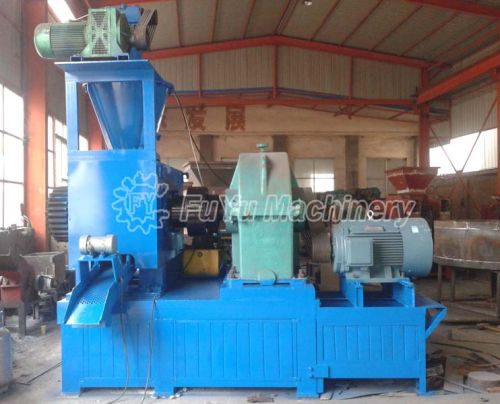

Briquette Machine, Brand Name : FuYu, Certification : CE & ISO

We are offering briquette machine introduction
high pressure ball machine is used for pressing material which are difficult to molding, the character of high pressure ball machine is molding with high pressure, main engine revolution is adjustable also with a screw feeding device. Our company specialized in the production of briquette ball press machine with powered by the electromagnetic adjustable speed motor, use the belt pulley, cylindrical gear reducer, drive shaft by pin coupling. The drive shaft and the driven shaft of the briquette ball press machine through a gear to ensure the synchronous operation. There is a hydraulic device behind passive bearing seat.
Features
the sharp of the pellet which product by high press machine determines weather the material using completely or the medium permeability, it`s take a important role on the whole process. During the practical operation, the sharp of pellet more approximate irregular,like a lump of coal, the combustion air permeability is better and more completely combustion. If the shape belong to multiple polygons, according to the theoretical calculation, more the contact surface and the rake angle, more easily to built a framework, and performance well when burning or smelting. But hard performance with the processing mold , so mostly, factory mainly product the ball in the market. Our company adopt advanced technology and precision casting method. Using nickel, chromium, manganese, molybdenum, titanium and other metal materials, have high strength, very tenacious , wear resistance, and other significant characteristics. Have solved the problem of roll wear resistance, this machine assembled wear-resistant alloy square multi edge ball roll. So that the products are more convenient to operation.
Technical parameters
model: fy-700
capacity: 5th
power: 75kw
reducer: zs-1450
roller dia: 700mm
roller width: 225mm
max pressure: 300t
weight: 17t
